SKU: BAM.1812

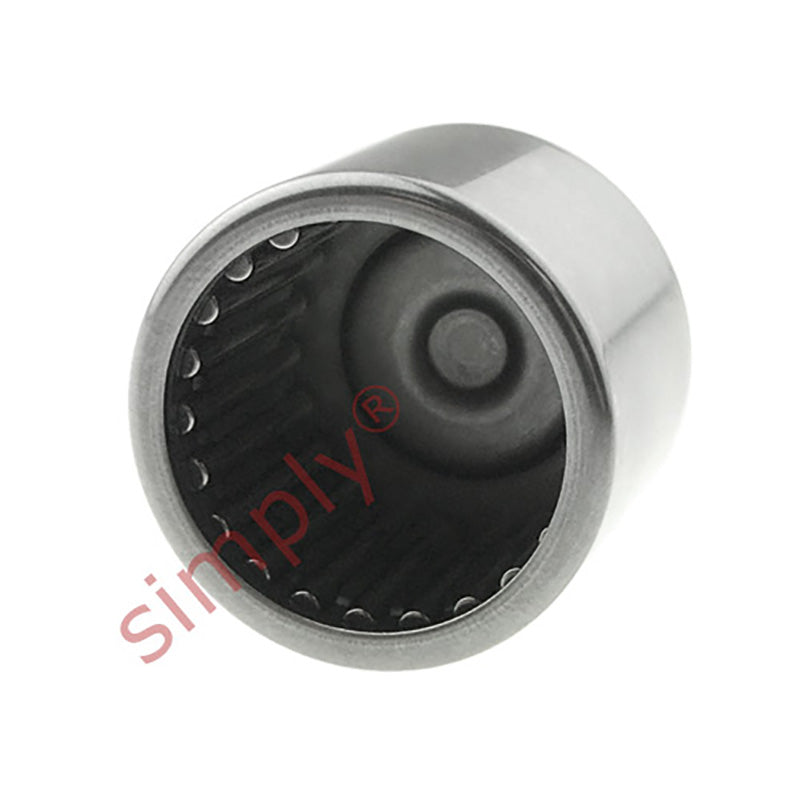

BAM1812 Imperial Closed End Needle Roller Bearing 1-1/8x1-3/8x3/4 inch
BAM1812 Imperial Closed End Needle Roller Bearing 1-1/8x1-3/8x3/4 inch
Regular price
CHF 7.44
ex VAT
Regular price
Sale price
CHF 7.44
ex VAT
Equivalent to: MJ18121 BCE1812
In stock
Price Break
10+
CHF 6.62
19+
CHF 6.25
29+
CHF 6.18
39+
CHF 6.10
49+
CHF 6.03
74+
CHF 5.95
99+
CHF 5.58
199+
CHF 5.51
249+
CHF 5.43
499+
CHF 5.36
999+
CHF 5.21
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ18121 BCE1812
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-3/8 inch |
| C | 3/4 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 15000 N |
| Static Load C0 | 26900 N |
| Weight | 33 g |
