SKU: BAM.2610

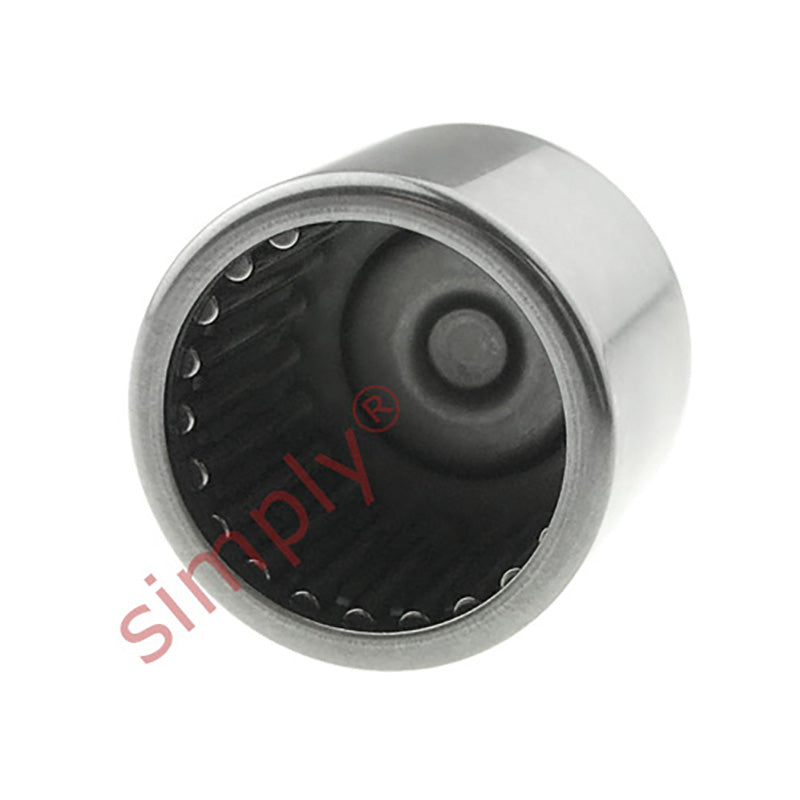

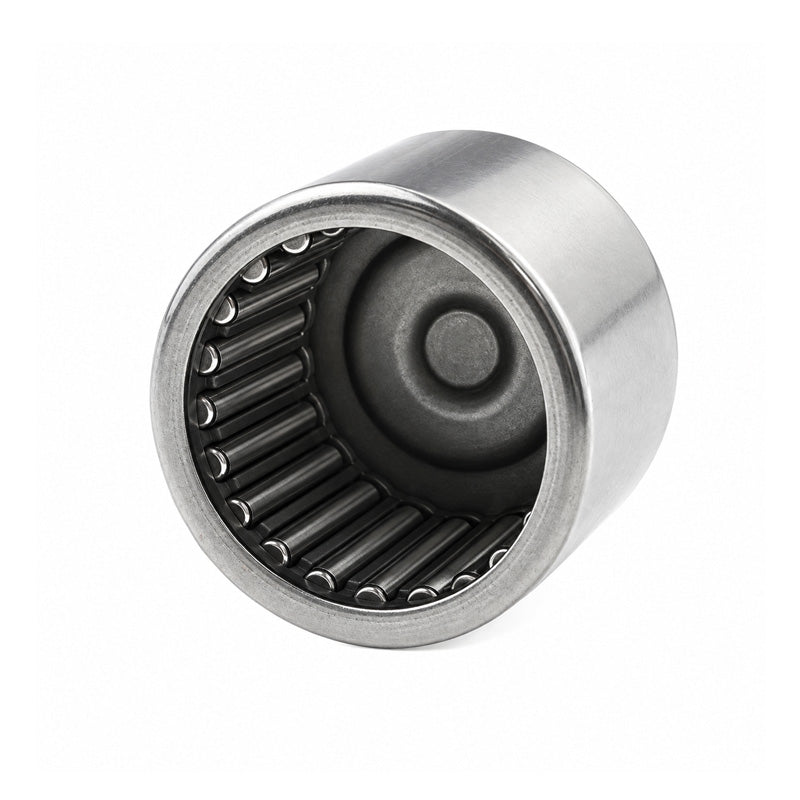

BAM2610 Imperial Closed End Needle Roller Bearing 1-5/8x2x5/8 inch
BAM2610 Imperial Closed End Needle Roller Bearing 1-5/8x2x5/8 inch
Regular price
CHF 10.76
ex VAT
Regular price
Sale price
CHF 10.76
ex VAT
In stock
Price Break
10+
CHF 9.58
19+
CHF 9.04
29+
CHF 8.93
39+
CHF 8.82
49+
CHF 8.72
74+
CHF 8.61
99+
CHF 8.07
199+
CHF 7.96
249+
CHF 7.85
499+
CHF 7.75
999+
CHF 7.53
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Fw | 1-5/8 inch |
|---|---|
| D | 2 inch |
| C | 5/8 inch |
| t2 max | 2.8mm |
| Dynamic Load C | 18900 N |
| Static Load C0 | 30000 N |
| Weight | 62.5 g |
