SKU: BAM.88

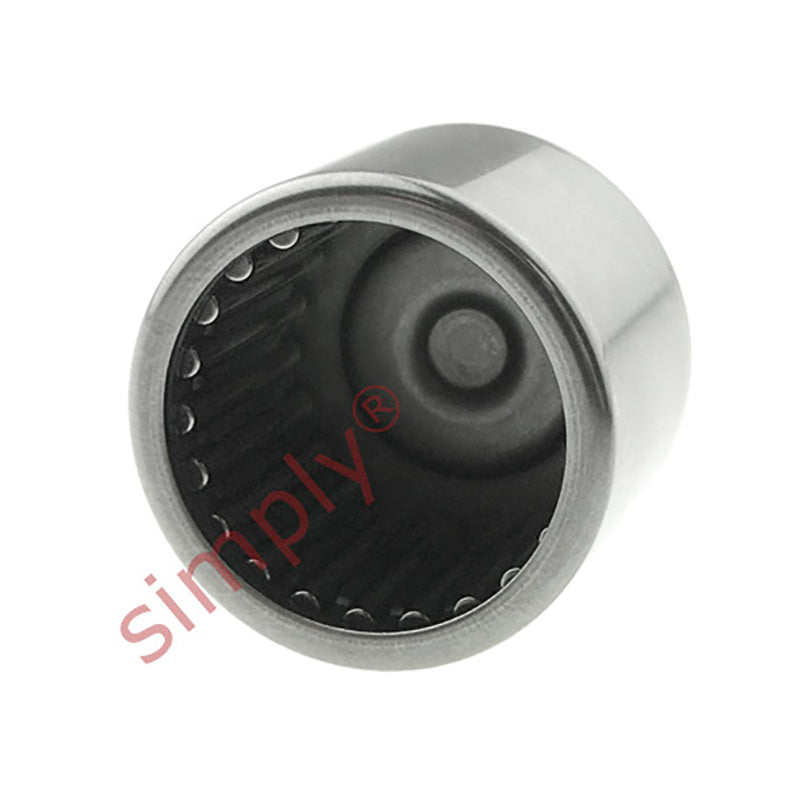

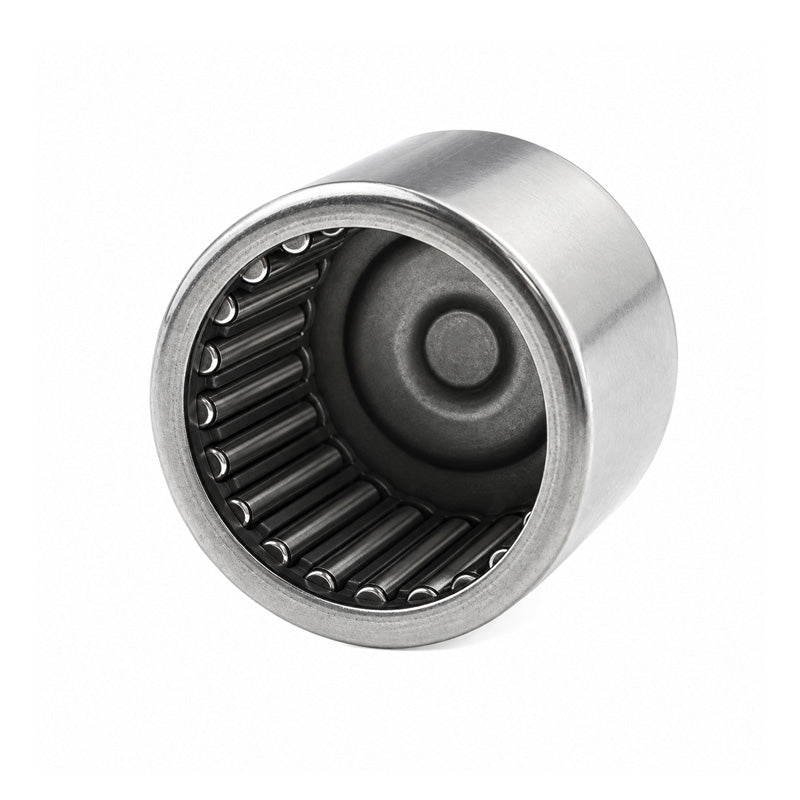

BAM88 Imperial Closed End Needle Roller Bearing 1/2x11/16x1/2 inch
BAM88 Imperial Closed End Needle Roller Bearing 1/2x11/16x1/2 inch
Regular price
CHF 5.98
ex VAT
Regular price
Sale price
CHF 5.98
ex VAT
Equivalent to: MJ881 BCE88
In stock
Price Break
10+
CHF 5.32
19+
CHF 5.02
29+
CHF 4.96
39+
CHF 4.90
49+
CHF 4.84
74+
CHF 4.78
99+
CHF 4.49
199+
CHF 4.43
249+
CHF 4.37
499+
CHF 4.31
999+
CHF 4.19
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with one closed end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJ881 BCE88
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Fw | 1/2 inch |
|---|---|
| D | 11/16 inch |
| C | 1/2 inch |
| t2 max | 1mm |
| Dynamic Load C | 4710 N |
| Static Load C0 | 5700 N |
| Weight | 7.9 g |
