SKU: BB-6002-B180-10-GL

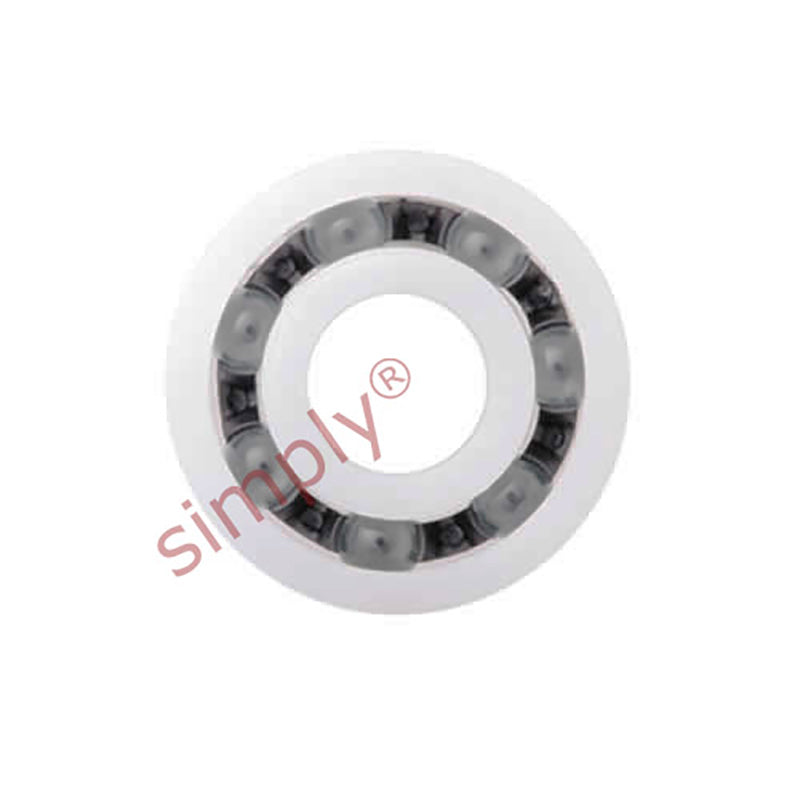

xiros xirodur BB6002B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 15x32x9mm
xiros xirodur BB6002B18010GL Open Type Radial Groove Ball Bearing with PA Cage and Glass Balls 15x32x9mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
5+
CHF 19.72
9+
CHF 18.61
29+
CHF 18.39
49+
CHF 18.17
99+
CHF 17.95
199+
CHF 17.73
299+
CHF 16.62
399+
CHF 16.40
499+
CHF 16.18
749+
CHF 15.96
999+
CHF 15.51
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and glass balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 32mm |
| b1 | 9mm |
| Max static load capacity | 338 N |
| Static load capacity | 146 N |
| Dynamic load capacity | 196 N |
| Max speed | 1600 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Glass |
