SKU: BB-625-B180-30-ES

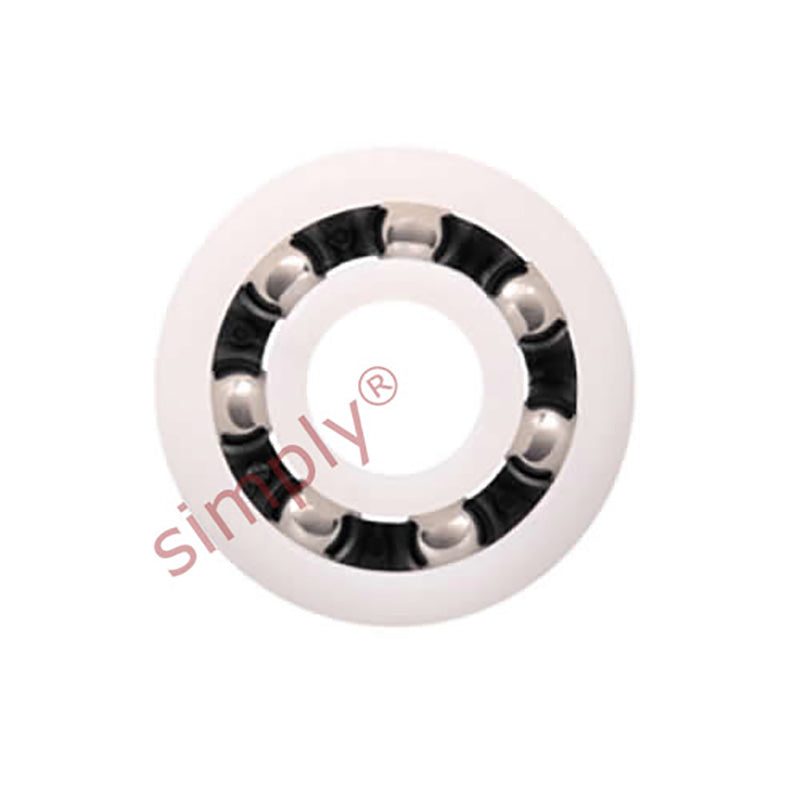

xiros xirodur BB625B18030ES Open Type Radial Groove Ball Bearing with B180 Cage and Stainless Steel Balls 5x16x5mm - Allow 2-3 Days
xiros xirodur BB625B18030ES Open Type Radial Groove Ball Bearing with B180 Cage and Stainless Steel Balls 5x16x5mm - Allow 2-3 Days
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
4+
CHF 19.73
9+
CHF 18.62
29+
CHF 18.40
49+
CHF 18.18
99+
CHF 17.96
199+
CHF 17.74
299+
CHF 16.63
399+
CHF 16.41
499+
CHF 16.18
749+
CHF 15.96
999+
CHF 15.52
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. These bearings can be used as quiet-running, FDA-compliant and low-priced ball bearings. The independently developed material makes it possible to offer a long service life and outstanding value for money. Benefits: Lubrication- and maintenance-free, quiet running, FDA-compliant, media-resistant. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

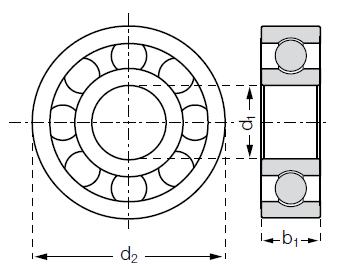

| d1 | 5mm |
|---|---|
| d2 | 16mm |
| b1 | 5mm |
| Max static load capacity | 75 N |
| Static load capacity | 40 N |
| Dynamic load capacity | 55 N |
| Max speed | 3700 rpm |
| Race | B180 |
| Cage | B180 |
| Ball material | Stainless Steel |
