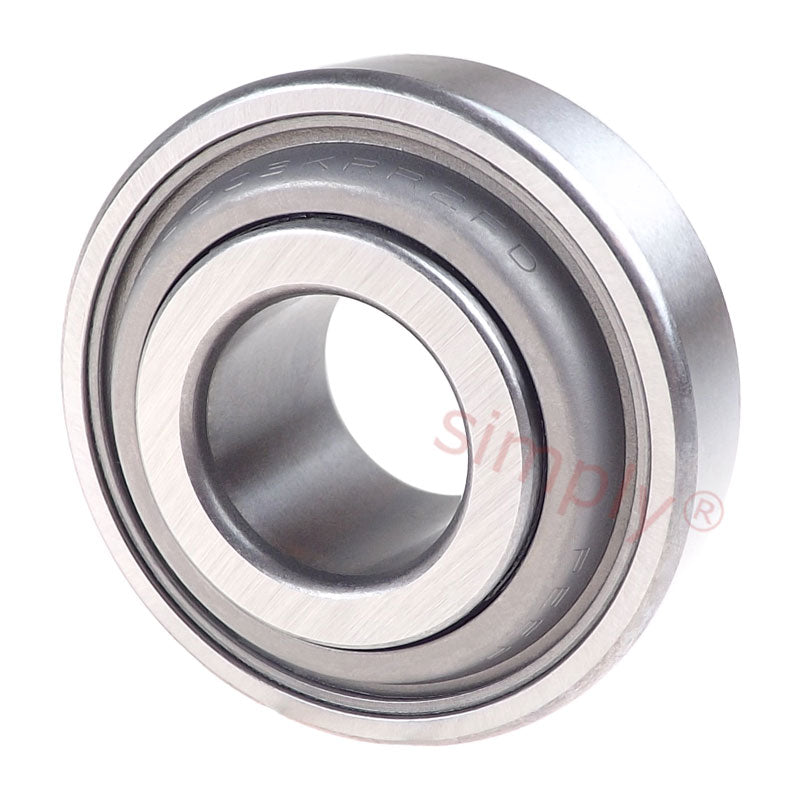

• Major Brand BB203KRR2FDCX Closing Wheel Round Bore Bearing 0.64x1.5748x0.72 inch
1 1

SKU: BB203KRR2FD-CX-MB

Major Brand BB203KRR2FDCX Closing Wheel Round Bore Bearing 0.64x1.5748x0.72 inch

Major Brand BB203KRR2FDCX Closing Wheel Round Bore Bearing 0.64x1.5748x0.72 inch
CHF 18.00 ex VAT
CHF 18.00 ex VAT
Sale Sold out

Equivalent to: BB203KRR2FD-CX

In stock

Price Break
5+ CHF 14.25
9+ CHF 13.45
19+ CHF 13.29
29+ CHF 13.13
49+ CHF 12.97
74+ CHF 12.81
99+ CHF 12.01
199+ CHF 11.85
249+ CHF 11.69
499+ CHF 11.53
999+ CHF 11.21
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Press Wheel/Closing Wheel
Application conditions:

  • Press and closing wheel perform different functions in the machine but are exposed to similar application conditions; similar bearing solutions are used
  • Dusty and sometimes moist environment
Benefits and functional features:

Increased productivity and bearing life in field:
  • Optimized internal geometry
  • High load capacity
  • High contamination feature package with exclusive sealing system
Increased speed to the market:
  • PEER offers the industries largest range of high performance seeding bearings

Seal Type: Y, DBL
Typical Application & Speed Limit: Planters: Press Wheel/Gauge Wheel - Basic BRG. Size < 205: 2000 RPM , Basic BRG. Size > 205: 1000 RPM
Typical Environment: Light direct contamination, at one foot distance from ground
Contamination Exclusion: High


Equivalent: BB203KRR2FD-CX
Brand / Quality:
PEER - High Quality
Inside Diameter:
16.25mm = 0.64 inch
Outside Diameter:
40mm = 1.574 inch
Width:
18.28mm = 0.72 inch
Technical
d 0.64 inch = 16.256mm (Tolerance +.0000 to minus 0.005)
D 1.5748 inch = 40mm (Tolerance +.0000 to minus 0.0005)
Bi 0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005)
Be 0.4724 inch = 12mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type Y, DBL Seal
Load Ratings Dynamic 1900 lbf
Load Ratings Static 825 lb
