SKU: BHA.1312.ZOH

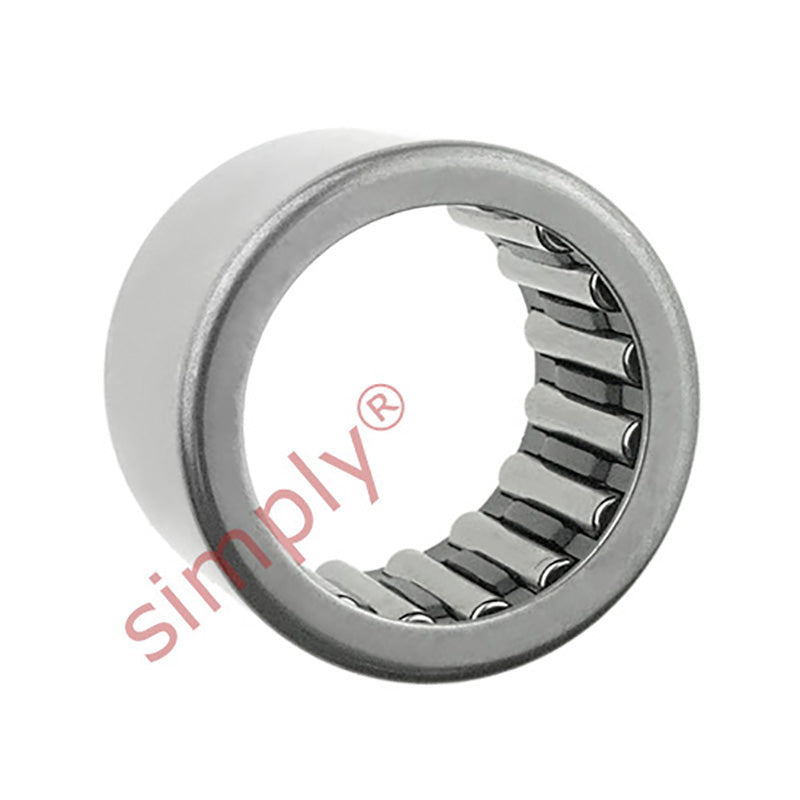

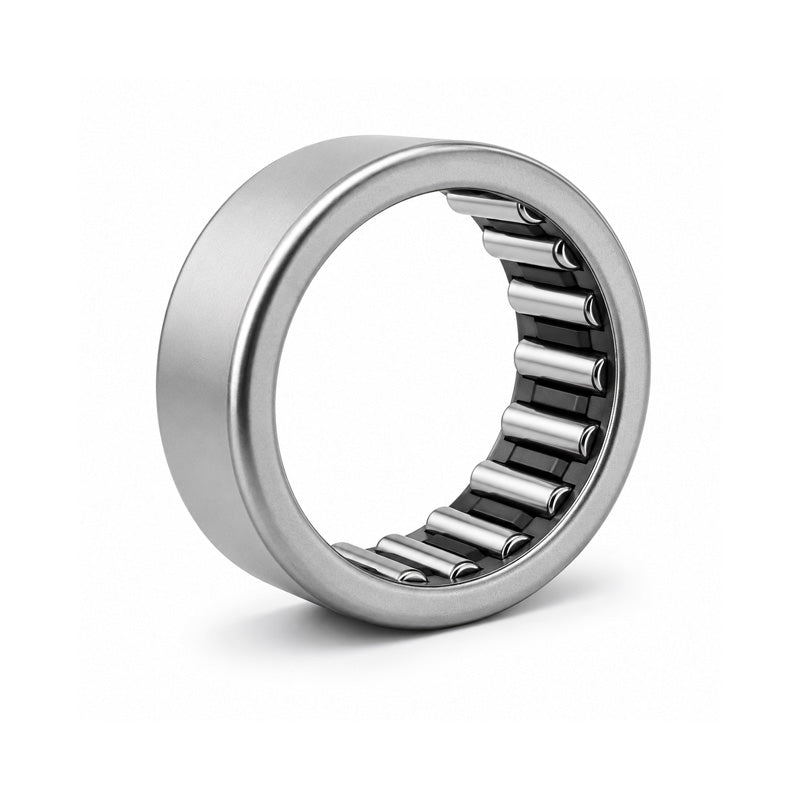

BHA1312ZOH Needle Roller Bearing 13/16x1-1/8x3/4 inch
BHA1312ZOH Needle Roller Bearing 13/16x1-1/8x3/4 inch
Regular price
CHF 4.46
ex VAT
Regular price
Sale price
CHF 4.46
ex VAT
Equivalent to: JH1312 SCH1312
In stock
Price Break
10+
CHF 3.97
19+
CHF 3.75
29+
CHF 3.70
39+
CHF 3.66
49+
CHF 3.61
74+
CHF 3.57
99+
CHF 3.35
199+
CHF 3.30
249+
CHF 3.26
499+
CHF 3.21
999+
CHF 3.12
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1312 SCH1312
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 13/16 inch |
|---|---|
| D | 1-1/8 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 17300 N |
| Static Load Cr | 24400 N |
| Weight | 0.0285 kg |
