SKU: BHA.1812.ZOH

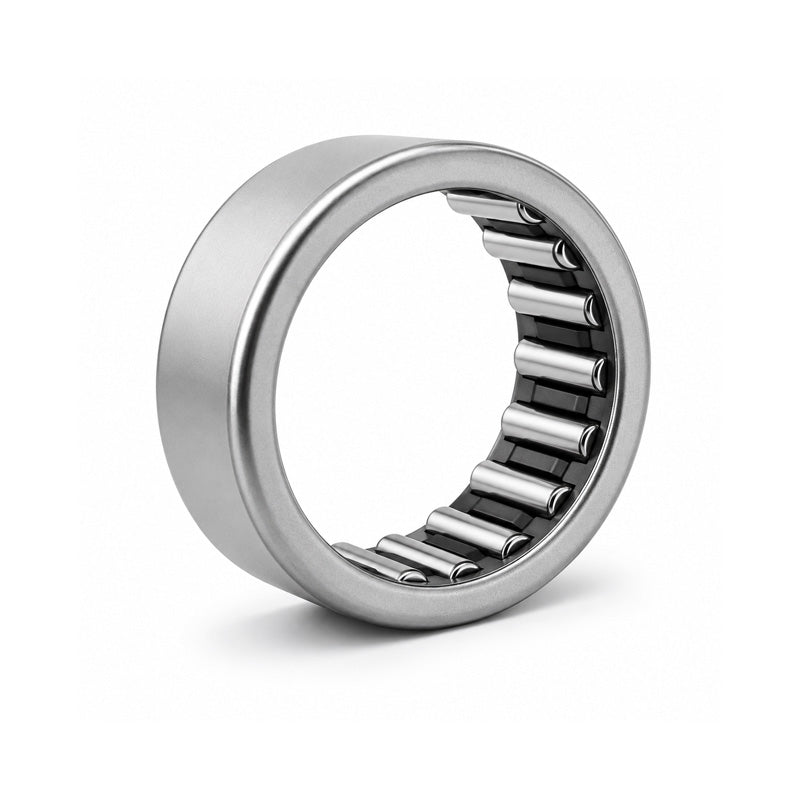

BHA1812ZOH Needle Roller Bearing 1-1/8x1-1/2x3/4 inch
BHA1812ZOH Needle Roller Bearing 1-1/8x1-1/2x3/4 inch
Regular price
CHF 5.90
ex VAT
Regular price
Sale price
CHF 5.90
ex VAT
Equivalent to: JH1812 SCH1812
In stock
Price Break
10+
CHF 5.25
19+
CHF 4.96
29+
CHF 4.90
39+
CHF 4.84
49+
CHF 4.78
74+
CHF 4.72
99+
CHF 4.43
199+
CHF 4.37
249+
CHF 4.31
499+
CHF 4.25
999+
CHF 4.13
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1812 SCH1812
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.10mm = 1.5 (1-1/2) inch
- Width:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 3/4 inch |
| Dynamic Load Cor | 22500 N |
| Static Load Cr | 32200 N |
| Weight | 0.045 kg |
