SKU: BHA.1816.ZOH

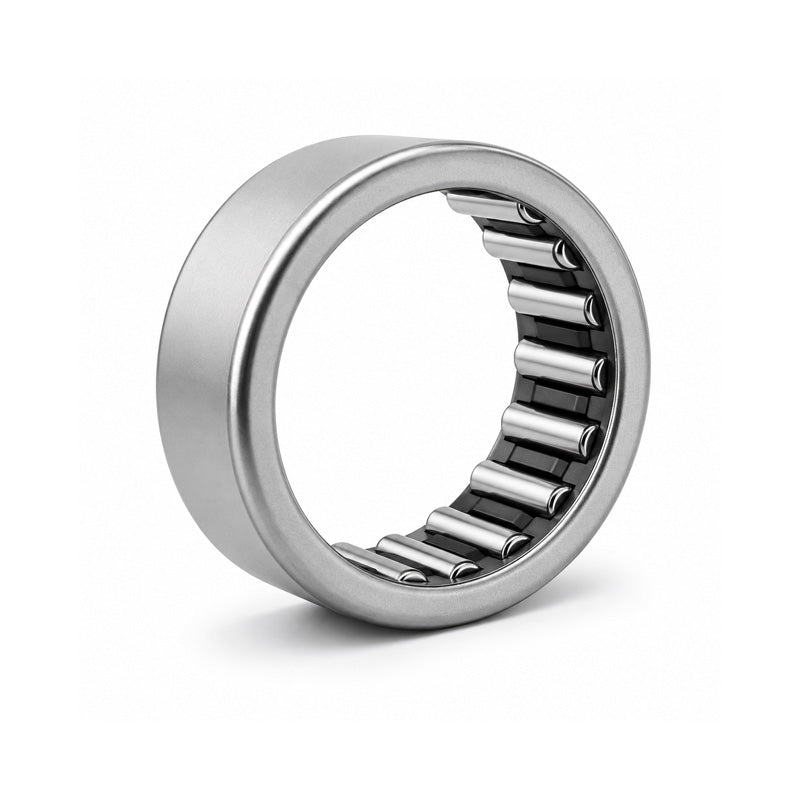

BHA1816ZOH Needle Roller Bearing 1-1/8x1-1/2x1 inch
BHA1816ZOH Needle Roller Bearing 1-1/8x1-1/2x1 inch
Regular price
CHF 6.55
ex VAT
Regular price
Sale price
CHF 6.55
ex VAT
Equivalent to: JH1816 SCH1816
In stock
Price Break
10+
CHF 5.83
19+
CHF 5.50
29+
CHF 5.44
39+
CHF 5.37
49+
CHF 5.31
74+
CHF 5.24
99+
CHF 4.91
199+
CHF 4.85
249+
CHF 4.78
499+
CHF 4.72
999+
CHF 4.59
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: JH1816 SCH1816
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 38.10mm = 1.5 (1-1/2) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-1/8 inch |
|---|---|
| D | 1-1/2 inch |
| C | 1 inch |
| Dynamic Load Cor | 30900 N |
| Static Load Cr | 48600 N |
| Weight | 0.06 kg |
