SKU: BHAM.2216

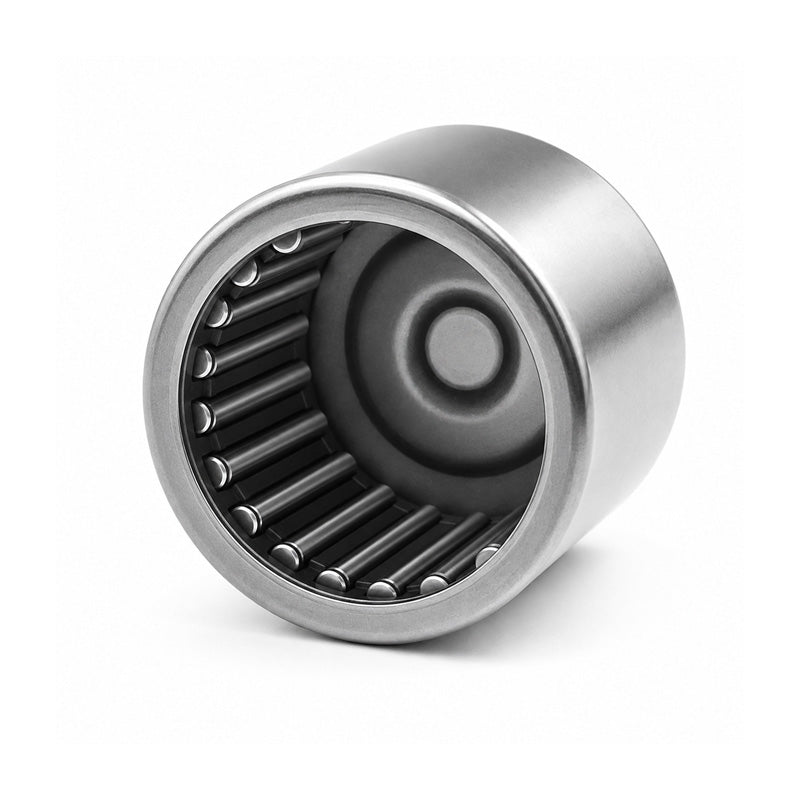

BHAM2216 Needle Roller Bearing 1-3/8x1-3/4x1 inch
BHAM2216 Needle Roller Bearing 1-3/8x1-3/4x1 inch
Regular price
CHF 11.40
ex VAT
Regular price
Sale price
CHF 11.40
ex VAT
Equivalent to: MJH22161 BCH2216
In stock
Price Break
10+
CHF 10.15
19+
CHF 9.58
29+
CHF 9.46
39+
CHF 9.35
49+
CHF 9.23
74+
CHF 9.12
99+
CHF 8.55
199+
CHF 8.44
249+
CHF 8.32
499+
CHF 8.21
999+
CHF 7.98
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH22161 BCH2216
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-3/4 inch |
| C | 1 inch |
| Dynamic Load Cor | 34100 N |
| Static Load Cr | 58400 N |
| Weight | 0.077 kg |
