SKU: BHAM.98

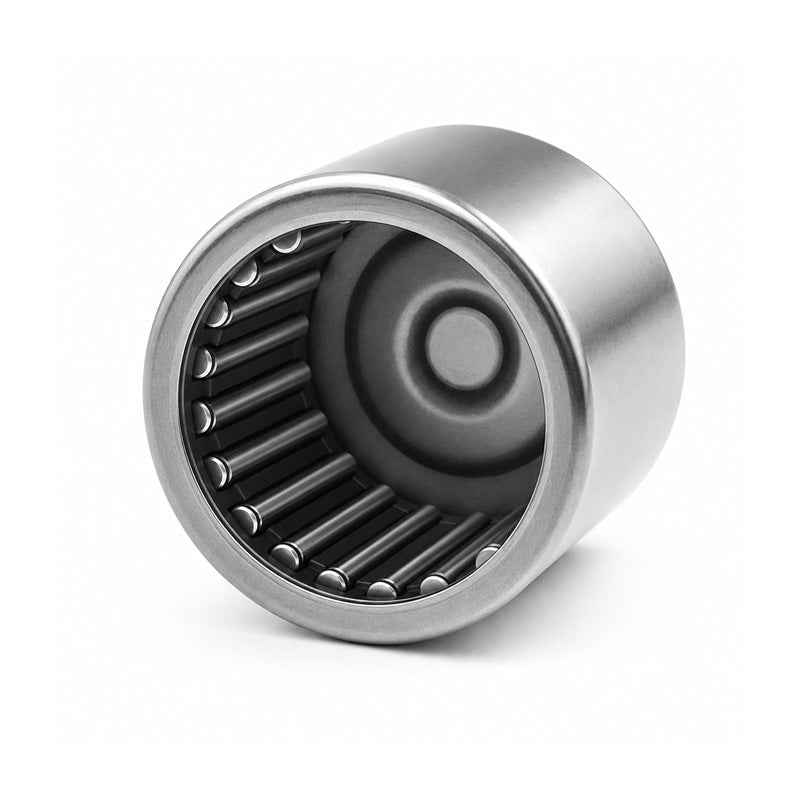

BHAM98 Needle Roller Bearing 9/16x13/16x1/2 inch
BHAM98 Needle Roller Bearing 9/16x13/16x1/2 inch
Regular price
CHF 6.18
ex VAT
Regular price
Sale price
CHF 6.18
ex VAT
Equivalent to: MJH981 BCH98
In stock
Price Break
10+
CHF 5.50
19+
CHF 5.19
29+
CHF 5.13
39+
CHF 5.07
49+
CHF 5.01
74+
CHF 4.94
99+
CHF 4.64
199+
CHF 4.57
249+
CHF 4.51
499+
CHF 4.45
999+
CHF 4.33
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings Closed End Type: As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
Equivalent: MJH981 BCH98
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical

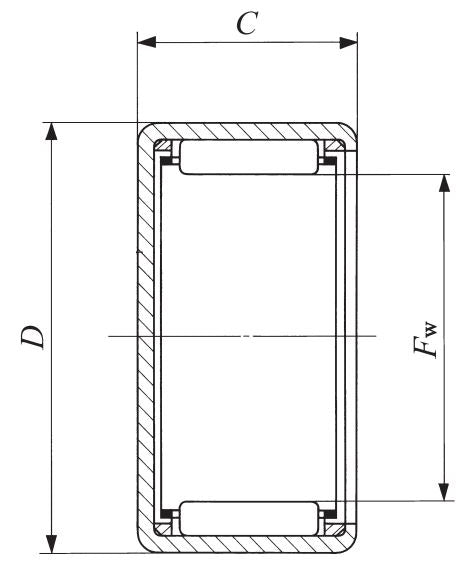

| Fw | 9/16 inch |
|---|---|
| D | 13/16 inch |
| C | 1/2 inch |
| Dynamic Load Cor | 6380 N |
| Static Load Cr | 7330 N |
| Weight | 0.0125 kg |
