SKU: BK1812-NTN

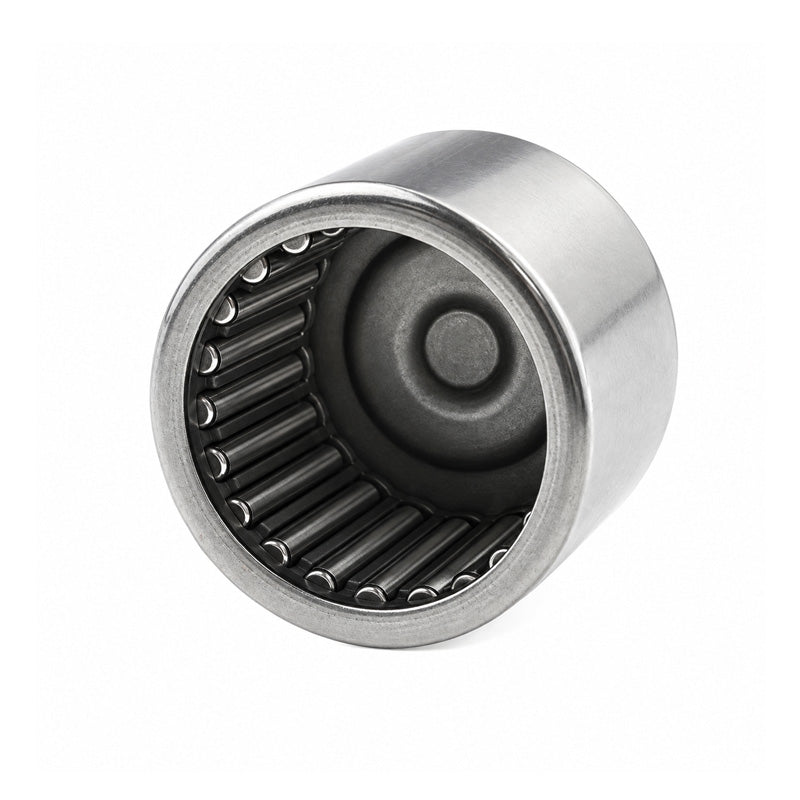

NTN BK1812 Drawn Cup Needle Roller Bearing with Closed End 18x24x12mm - Allow 2-3 Days
NTN BK1812 Drawn Cup Needle Roller Bearing with Closed End 18x24x12mm - Allow 2-3 Days
Regular price
CHF 5.37
ex VAT
Regular price
Sale price
CHF 5.37
ex VAT
In stock
Price Break
5+
CHF 5.32
10+
CHF 5.10
20+
CHF 4.99
50+
CHF 4.83
100+
CHF 4.73
500+
CHF 4.46
1000+
CHF 3.76
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 12mm
Technical
Technical
| Fw - Under rollers diameter | 18mm |
|---|---|
| D - Outside diameter | 24mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR15X18X12.5 |
| Cr - Dynamic load rating | 8.3 kN |
| C0r - Static load rating | 10.9 kN |
| N - Grease lubrication limit speed | 8500 tr/min |
| N - Oil lubrication limit speed | 13000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
