SKU: BK1816-NTN

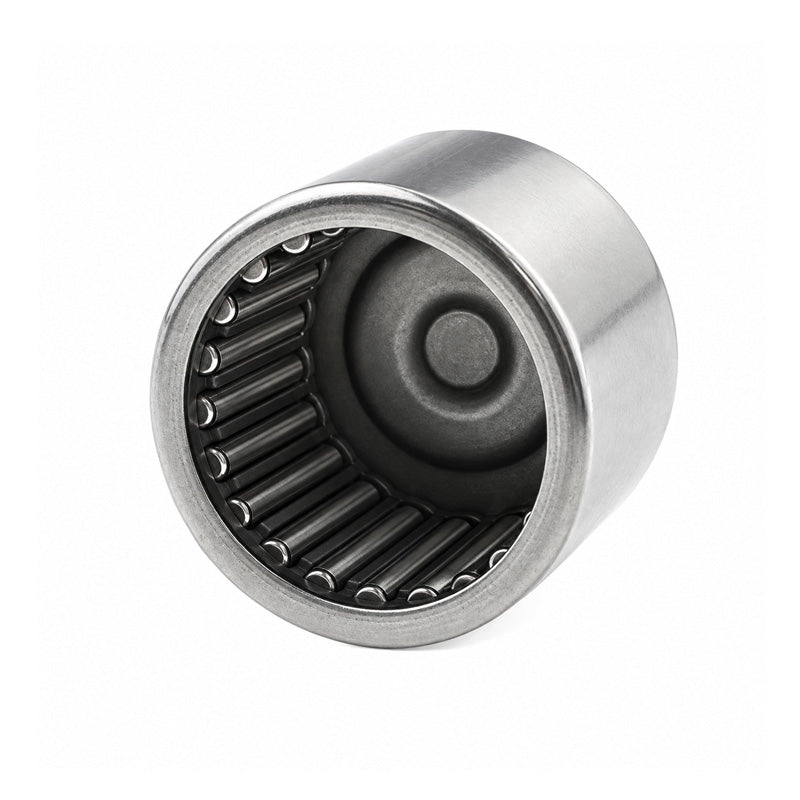

NTN BK1816 Drawn Cup Needle Roller Bearing with Closed End 18x24x16mm
NTN BK1816 Drawn Cup Needle Roller Bearing with Closed End 18x24x16mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.56
4+
CHF 5.25
9+
CHF 5.19
19+
CHF 5.13
49+
CHF 5.06
99+
CHF 5.00
499+
CHF 4.69
999+
CHF 4.63
1999+
CHF 4.56
2999+
CHF 4.50
4999+
CHF 4.38
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw - Under rollers diameter | 18mm |
|---|---|
| D - Outside diameter | 24mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR15X18X16.5 |
| Cr - Dynamic load rating | 11.8 kN |
| C0r - Static load rating | 17.3 kN |
| N - Grease lubrication limit speed | 8500 tr/min |
| N - Oil lubrication limit speed | 13000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
