SKU: BK2516-NTN

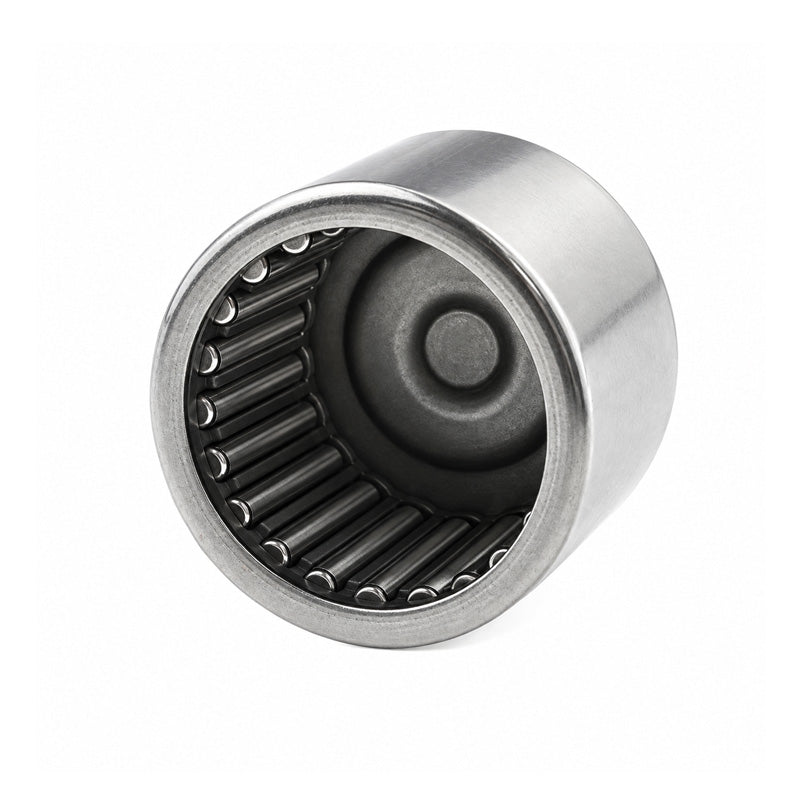

NTN BK2516 Drawn Cup Needle Roller Bearing with Closed End 25x32x16mm - Allow 2-3 Days
NTN BK2516 Drawn Cup Needle Roller Bearing with Closed End 25x32x16mm - Allow 2-3 Days
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Price Break
3+
CHF 4.75
4+
CHF 4.56
9+
CHF 4.46
19+
CHF 4.32
49+
CHF 4.22
99+
CHF 3.98
499+
CHF 3.36
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw - Under rollers diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR20X25X17 |
| Cr - Dynamic load rating | 15.9 kN |
| C0r - Static load rating | 24 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
