SKU: BK2538ZWD-NTN

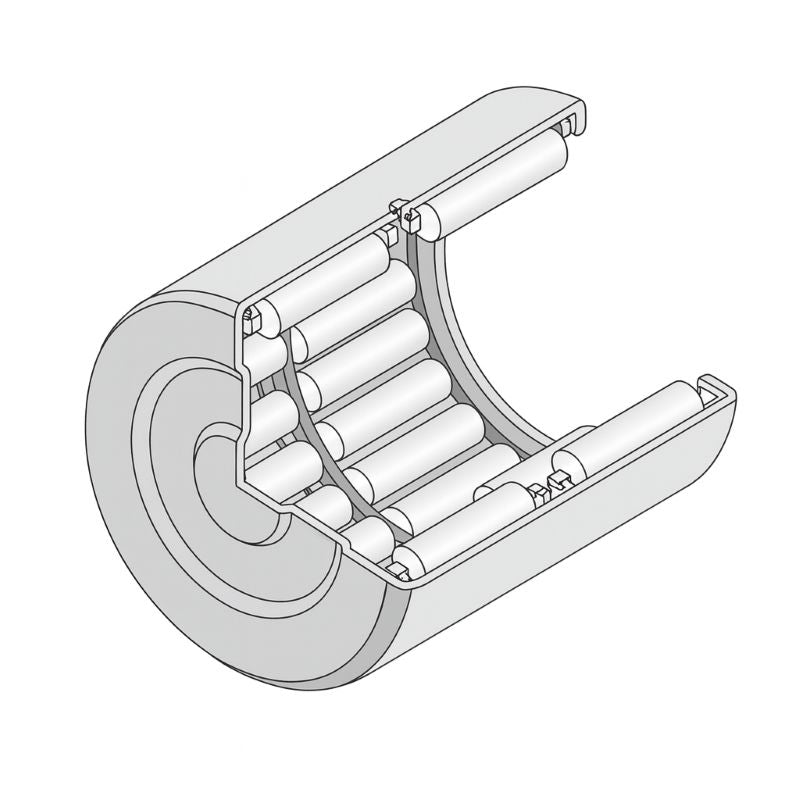

NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm
NTN BK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Closed End 25x32x38mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
3+
CHF 7.79
4+
CHF 7.35
9+
CHF 7.26
19+
CHF 7.18
49+
CHF 7.09
99+
CHF 7.00
499+
CHF 6.56
999+
CHF 6.48
1999+
CHF 6.39
2999+
CHF 6.30
4999+
CHF 6.13
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 38mm
Technical
Technical

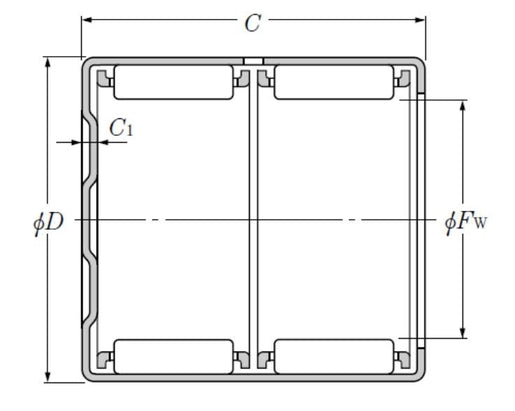

| Fw - Under rollers diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 38mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR20X25X38.5 |
| Cr - Dynamic load rating | 35 kN |
| C0r - Static load rating | 65.5 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
