SKU: BMB-6202/032S2/EA002A-SKF

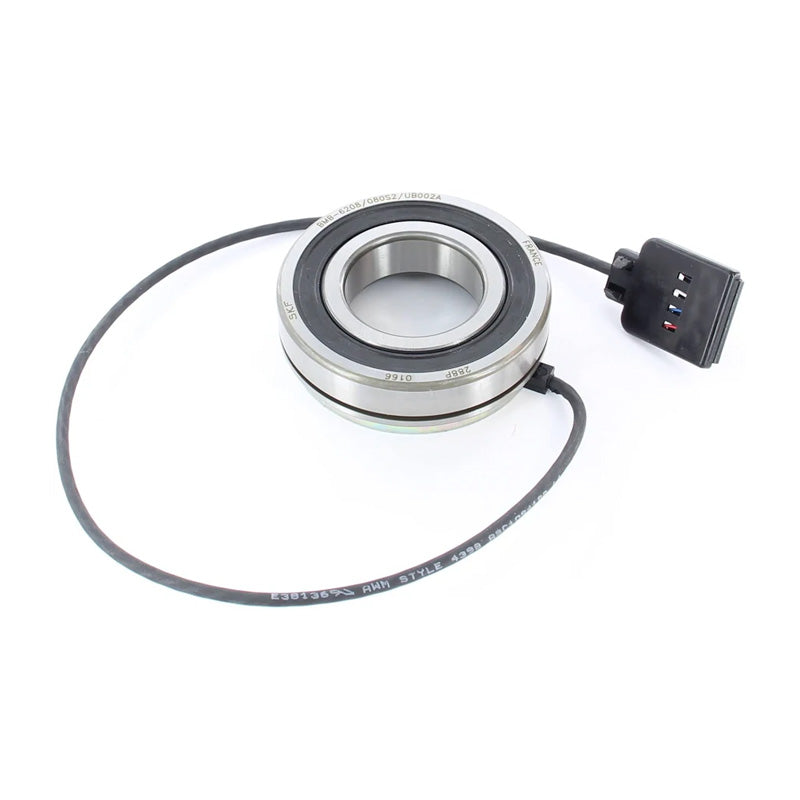

SKF BMB6202032S2EA002A Sensor Bearing Unit 15x35x11mm Allow 7-10 Days

Name: SKF BMB6202032S2EA002A Sensor Bearing Unit 15x35x11mm Allow 7-10 Days
Brand: SKF
SKU: BMB-6202/032S2/EA002A-SKF
Price: 239.00 CHF
Availability: InStock

CHF 239.00 ex VAT

Sale Sold out

Equivalent to: BMB-6204/032S2/UA002A

In stock

Price Break

3+ CHF 189.88

5+ CHF 179.21

9+ CHF 177.08

14+ CHF 174.95

15+ CHF 172.81

20+ CHF 170.68

49+ CHF 160.01

99+ CHF 157.88

249+ CHF 155.75

499+ CHF 153.61

999+ CHF 149.34

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Sensor Bearings: Are classed as mechantronic machine components covering the fields of both bearing and sensor engineering component. They provide the ideal versatile combination of bearing and sensor. The sensors are shielded from external influences, the sensor body and impulse rings are mechanically attached to each other providing an integral ready to mount unit.
Benefits: Combined sensor / bearing

Equivalent: BMB-6204/032S2/UA002A

Brand / Quality:: SKF - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 35mm
Width:: 11mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	15mm
D	35mm
B	11mm
Dynamic load Cr	8.06 kN
Static load Cor	3.75 kN
Fatigue load limit Pu	0.16 rpm
Limiting speed	13000 rpm
No of pulses	32
Period accuracy	±3%
Phase shift	90° ±30°
Weight	0.06 kg
d1	21.5mm
d2	19.5mm
D1	30.4mm
D2	34.4mm
b	1.35mm
C	2.06mm
r1r2 min	0.6mm
da min	19mm
db min	19mm
db max	19.4mm
Da max	31mm
ra max	0.6mm
Radial internal clearance min	11mm
Radial internal clearance max	25mm
