SKU: BMB-6204/048S2/EA002A-SKF

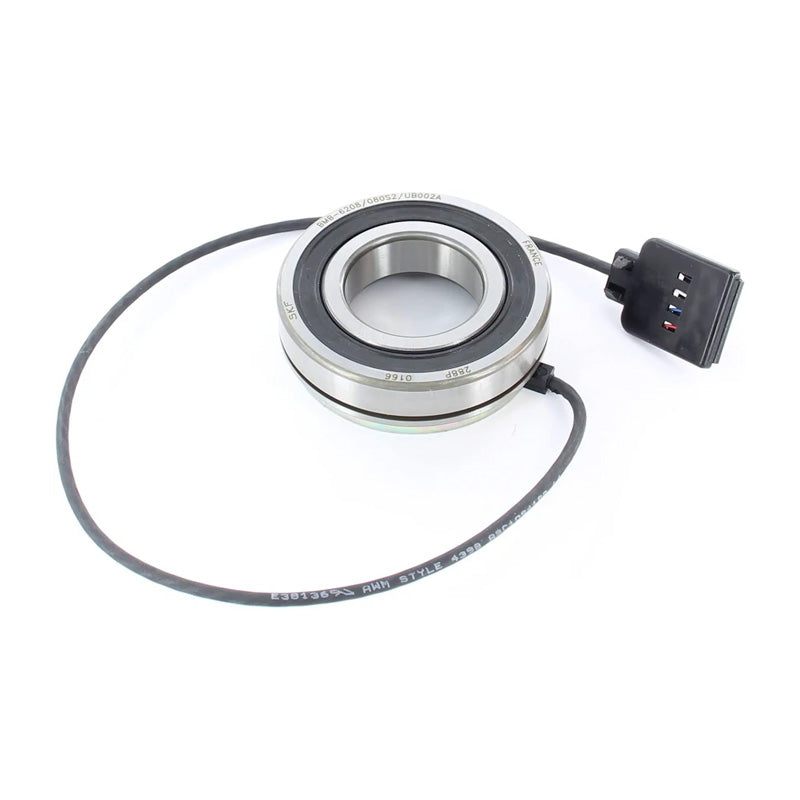

SKF BMB6204048S2EA002A Sensor Bearing Unit 20x47x14mm
SKF BMB6204048S2EA002A Sensor Bearing Unit 20x47x14mm
Regular price
CHF 134.00
ex VAT
Regular price
Sale price
CHF 134.00
ex VAT
Equivalent to: BMB-6204/048S2/UA002A
In stock
Price Break
3+
CHF 105.80
5+
CHF 99.86
9+
CHF 98.67
14+
CHF 97.48
15+
CHF 96.29
20+
CHF 95.10
49+
CHF 89.16
99+
CHF 87.97
249+
CHF 86.78
499+
CHF 85.59
999+
CHF 83.22
Share this product
Description
Description
|
SKF Sensor Bearings: Are classed as mechantronic machine components covering the fields of both bearing and sensor engineering component. They provide the ideal versatile combination of bearing and sensor. The sensors are shielded from external influences, the sensor body and impulse rings are mechanically attached to each other providing an integral ready to mount unit. Benefits: Combined sensor / bearing |
Equivalent: BMB-6204/048S2/UA002A
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load Cr | 13.5 kN |
| Static load Cor | 6.55 kN |
| Fatigue load limit Pu | 0.28 rpm |
| Limiting speed | 10000 rpm |
| No of pulses | 48 |
| Period accuracy | ±3% |
| Phase shift | 90° ±30° |
| Weight | 0.15 kg |
| d1 | 28.5mm |
| d2 | 26.4mm |
| D1 | 40.6mm |
| D2 | 46.4mm |
| b | 1.35mm |
| C | 2.06mm |
| r1r2 min | 1mm |
| da min | 25mm |
| db min | 25mm |
| db max | 26.3mm |
| Da max | 42mm |
| ra max | 1mm |
| Radial internal clearance min | 13mm |
| Radial internal clearance max | 28mm |
