SKU: BMB-6205/048S2/EA002A-SKF

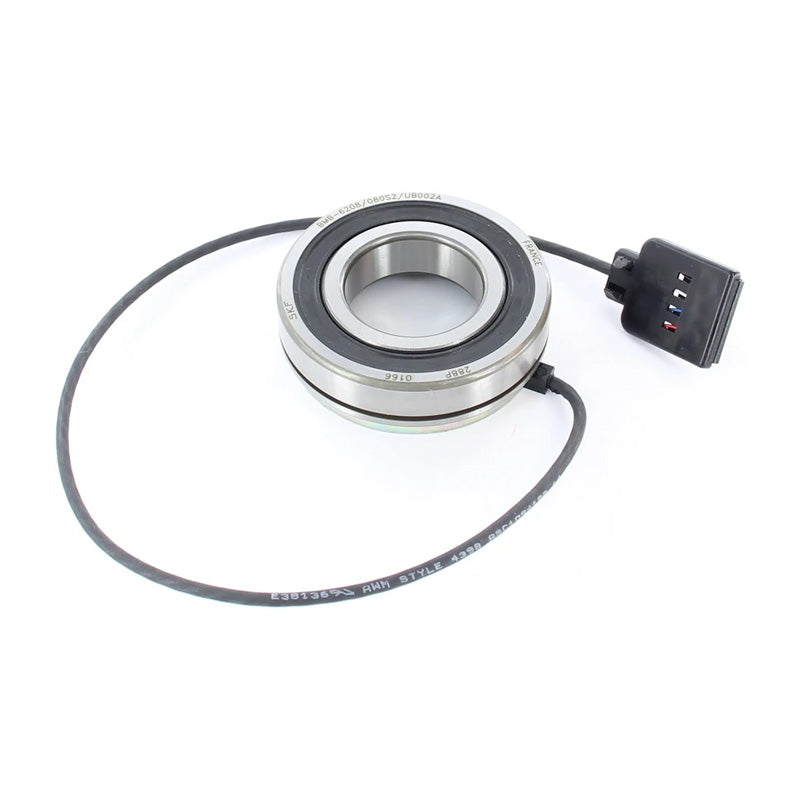

SKF BMB6205048S2EA002A Sensor Bearing Unit 25x52x15mm Allow 7-10 Days
SKF BMB6205048S2EA002A Sensor Bearing Unit 25x52x15mm Allow 7-10 Days
Regular price
CHF 246.92
ex VAT
Regular price
Sale price
CHF 246.92
ex VAT
Equivalent to: BMB-6205/048S2/UA002A
In stock
Price Break
10+
CHF 219.76
19+
CHF 207.41
29+
CHF 204.94
39+
CHF 202.47
49+
CHF 200.01
74+
CHF 197.54
99+
CHF 185.19
199+
CHF 182.72
249+
CHF 180.25
499+
CHF 177.78
999+
CHF 172.84
Couldn't load pickup availability
Description
Description
|
SKF Sensor Bearings: Are classed as mechantronic machine components covering the fields of both bearing and sensor engineering component. They provide the ideal versatile combination of bearing and sensor. The sensors are shielded from external influences, the sensor body and impulse rings are mechanically attached to each other providing an integral ready to mount unit. Benefits: Combined sensor / bearing |
Equivalent: BMB-6205/048S2/UA002A
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load Cr | 14.8 kN |
| Static load Cor | 7.8 kN |
| Fatigue load limit Pu | 0.34 rpm |
| Limiting speed | 8500 rpm |
| No of pulses | 48 |
| Period accuracy | ±3% |
| Phase shift | 90° ±30° |
| Weight | 0.18 kg |
| d1 | 34mm |
| d2 | 31.8mm |
| D1 | 46.3mm |
| D2 | 51.4mm |
| b | 1.35mm |
| C | 2.46mm |
| r1r2 min | 1mm |
| da min | 30mm |
| db min | 30mm |
| db max | 31.5mm |
| Da max | 47mm |
| ra max | 1mm |
| Radial internal clearance min | 13mm |
| Radial internal clearance max | 28mm |
