SKU: BP3S-50-210-TRI-SNR

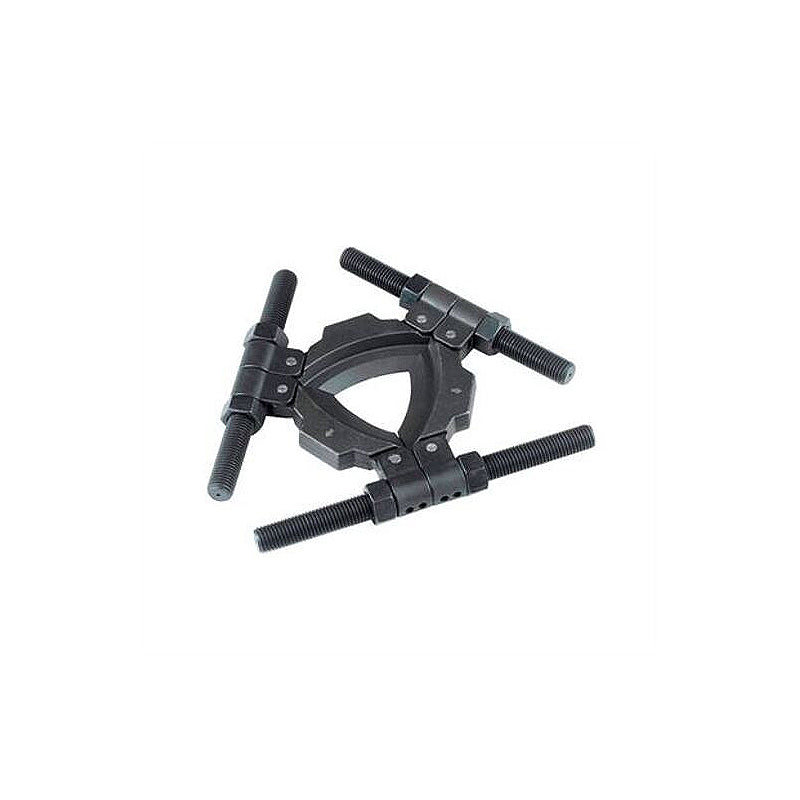

SNR BP3S 50-210 Tri-Section Pulling Plate 50x210x31mm - Allow 2-3 Days
SNR BP3S 50-210 Tri-Section Pulling Plate 50x210x31mm - Allow 2-3 Days
Regular price
CHF 440.00
ex VAT
Regular price
Sale price
CHF 440.00
ex VAT
In stock
Price Break
3+
CHF 350.30
5+
CHF 330.62
9+
CHF 326.68
19+
CHF 322.75
49+
CHF 318.81
74+
CHF 314.87
99+
CHF 295.19
199+
CHF 291.26
249+
CHF 287.32
499+
CHF 283.39
999+
CHF 275.51
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 8000kg |
|---|---|
| Minimum Shaft Diameter A1 | 50mm |
| Maximum Shaft Diameter | 210mm |
| Max Spread B | 280mm |
| Length D | 285mm |
| Thread E | 3/4 inch - 16 UNF |
| Thickness F | 31mm |
| Material | Forged Steel Alloy |
| Weight | 5.5kg |
