SKU: BP3S-90-340-TRI-SNR

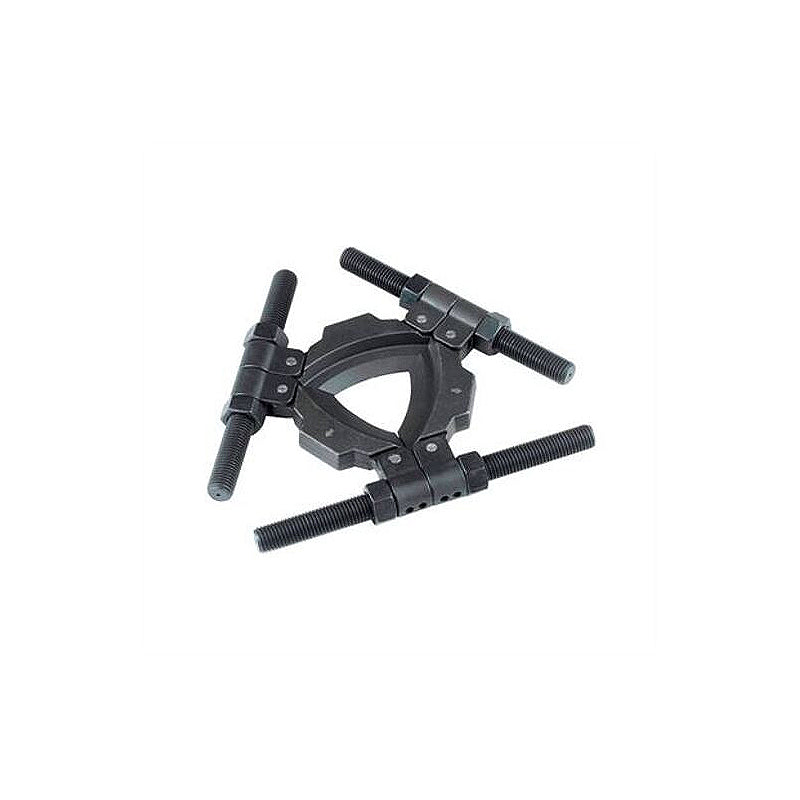

SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
Regular price
CHF 1,209.98
ex VAT
Regular price
Sale price
CHF 1,209.98
ex VAT
In stock
Price Break
10+
CHF 1,076.88
19+
CHF 1,016.38
29+
CHF 1,004.28
39+
CHF 992.18
49+
CHF 980.08
74+
CHF 967.98
99+
CHF 907.49
199+
CHF 895.39
249+
CHF 883.29
499+
CHF 871.19
999+
CHF 846.99
Couldn't load pickup availability
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 12000kg |
|---|---|
| Minimum Shaft Diameter A1 | 90mm |
| Maximum Shaft Diameter | 340mm |
| Max Spread B | 460mm |
| Length D | 430mm |
| Thread E | 7/8 inch - 16 UNF |
| Thickness F | 45mm |
| Material | Forged Steel Alloy |
| Weight | 16.5kg |
