SKU: BPES-10-105-SET-SNR

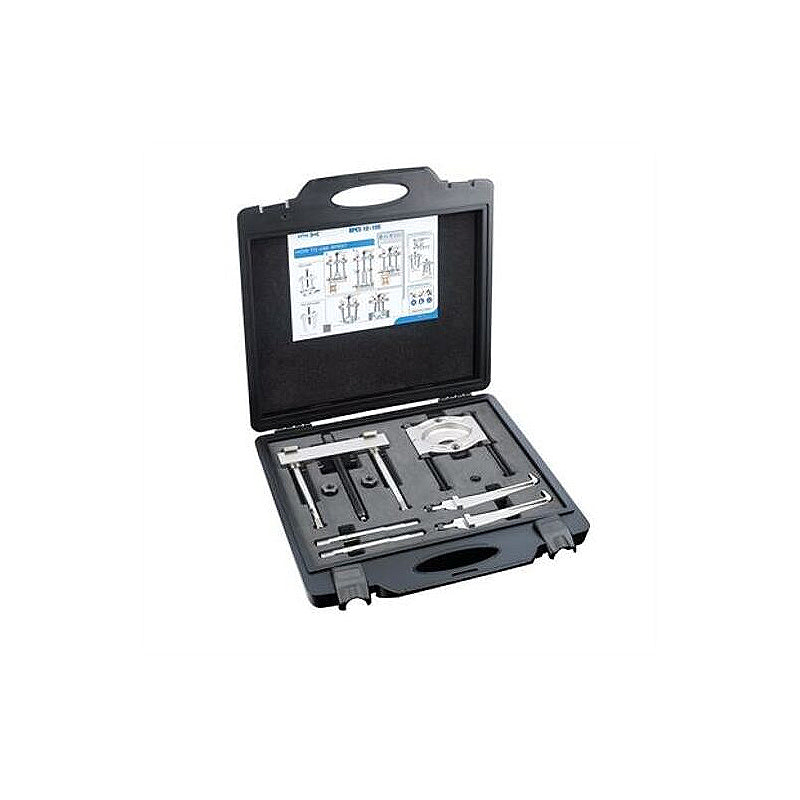

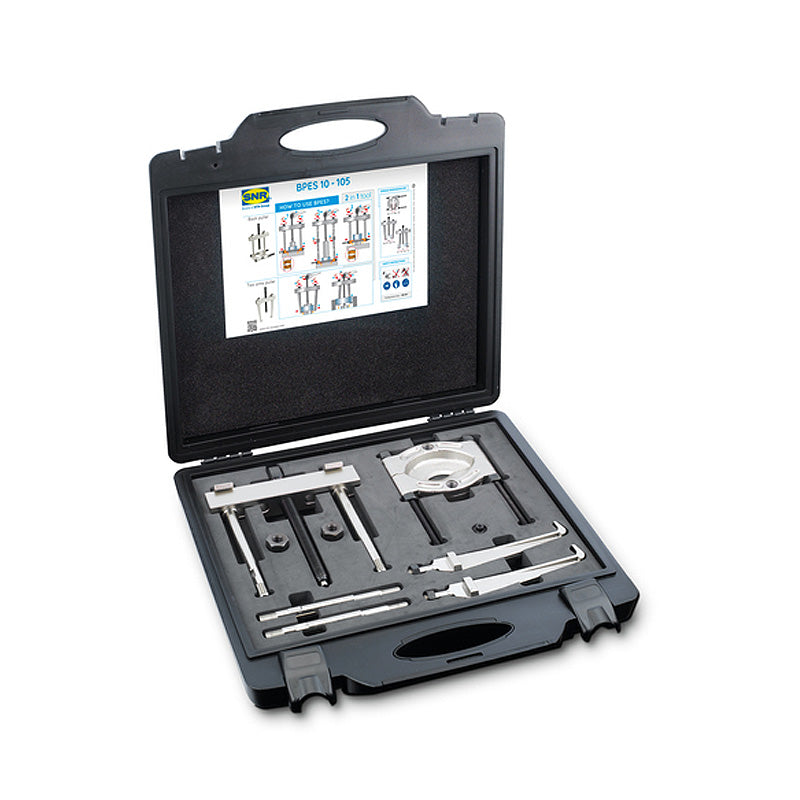

SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
SNR BPES 10-105 Back Puller Kit for Internal and External Gripping - Allow 2-3 Days
Regular price
CHF 380.11
ex VAT
Regular price
Sale price
CHF 380.11
ex VAT
In stock
Price Break
10+
CHF 338.30
19+
CHF 319.29
29+
CHF 315.49
39+
CHF 311.69
49+
CHF 307.89
74+
CHF 304.09
99+
CHF 285.08
199+
CHF 281.28
249+
CHF 277.48
499+
CHF 273.68
999+
CHF 266.08
Couldn't load pickup availability
Description
Description
SNR BPES Back Puller Kit: This back puller is both a puller and separator which is an essential tool for extraction by internal or external gripping. The seperator allows for removal of a tight-fitting bearing ring in contact with a shoulder.
Benefits: High-quality and multi-functional.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 10000kg |
|---|---|

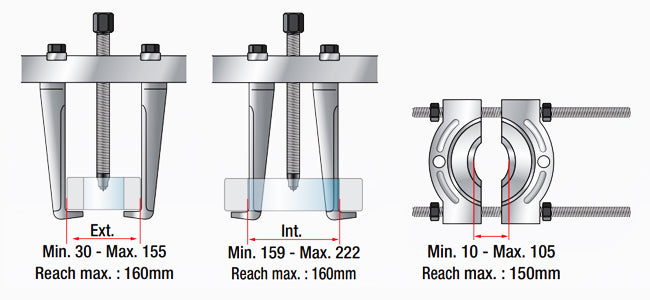

| Separator Shaft Diameter Range | 10mm - 105mm |
| Separator Outside Diameter Range | Maximum of 175mm |
| Separator Max Reach | 150mm |
| Internal Gripper Puller Bore Diameter Range | 159mm - 222mm |
| Internal Gripper Puller Maximum Reach | 160mm |
| External Gripper Puller Outside Diameter Range | 30mm - 155mm |
| External Gripper Puller Maximum Reach | 160mm |
| Case Dimensions | 490x500x130mm |
| Contents | x1 Adjustable Bridge, x1 Separator, x2 Removable Puller Arms, x2 Extensions, x1 Tip Protector, x2 Coupling Nuts |
| Weight | 11kg |
