SKU: BR.283820

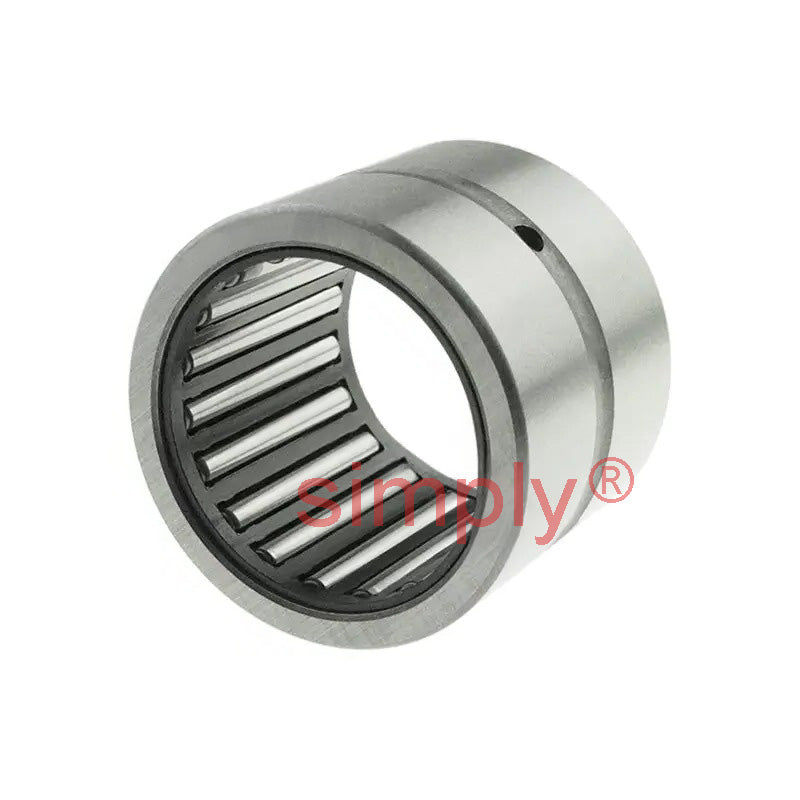

BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
BR283820 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/4x2-3/8x1-1/4 inch
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
10+
CHF 22.88
20+
CHF 21.59
30+
CHF 21.34
40+
CHF 21.08
50+
CHF 20.82
75+
CHF 20.57
100+
CHF 19.28
200+
CHF 19.02
250+
CHF 18.77
500+
CHF 18.51
1000+
CHF 17.99
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-3/4 inch |
|---|---|
| D | 2-3/8 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 58900 N |
| Static Load Cr | 103000 N |
| Weight | 0.25 kg |
