SKU: BR.486024

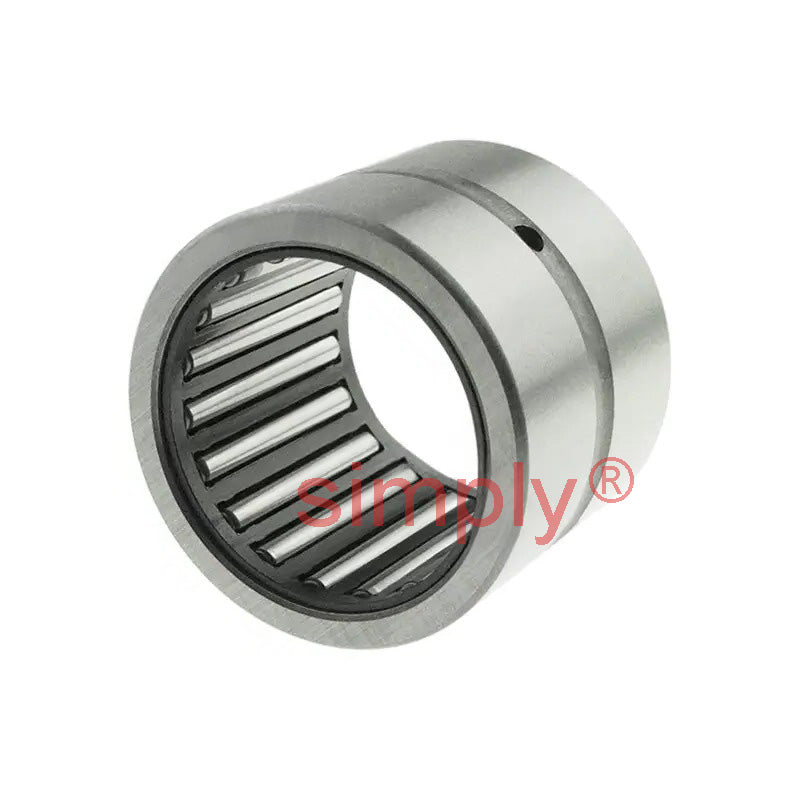

BR486024 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-1/2 inch
BR486024 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-1/2 inch
Regular price
CHF 55.51
ex VAT
Regular price
Sale price
CHF 55.51
ex VAT
Equivalent to: HJ486024 HJ-486024 MR48N MR-48-N SJ8516 NCS4824
In stock
Price Break
10+
CHF 49.40
19+
CHF 46.63
29+
CHF 46.07
39+
CHF 45.52
49+
CHF 44.96
74+
CHF 44.41
99+
CHF 41.63
199+
CHF 41.08
249+
CHF 40.52
499+
CHF 39.97
999+
CHF 38.86
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ486024 HJ-486024 MR48N MR-48-N SJ8516 NCS4824
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 3 inch |
|---|---|
| D | 3-3/4 inch |
| C | 1-1/2 inch |
| Dynamic Load Cor | 105000 N |
| Static Load Cr | 211000 N |
| Weight | 0.555 kg |
