SKU: BR.486028
BR486028 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-3/4 inch
BR486028 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3x3-3/4x1-3/4 inch
Regular price
CHF 61.00
ex VAT
Regular price
Sale price
CHF 61.00
ex VAT
Equivalent to: HJ486028 HJ-486028 MR48 MR-48 SJ8517
In stock
Price Break
10+
CHF 48.47
20+
CHF 45.75
30+
CHF 45.21
40+
CHF 44.66
50+
CHF 44.12
75+
CHF 43.57
100+
CHF 40.85
200+
CHF 40.30
250+
CHF 39.76
500+
CHF 39.21
1000+
CHF 38.13
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ486028 HJ-486028 MR48 MR-48 SJ8517
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch

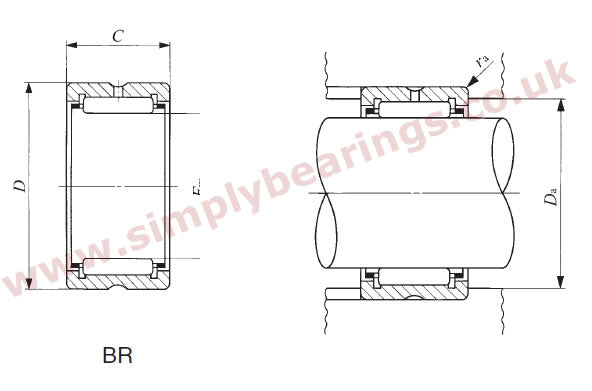

Technical
Technical
| Fw | 3 inch |
|---|---|
| D | 3-3/4 inch |
| C | 1-3/4 inch |
| Dynamic Load Cor | 122000 N |
| Static Load Cr | 255000 N |
| Weight | 0.65 kg |
