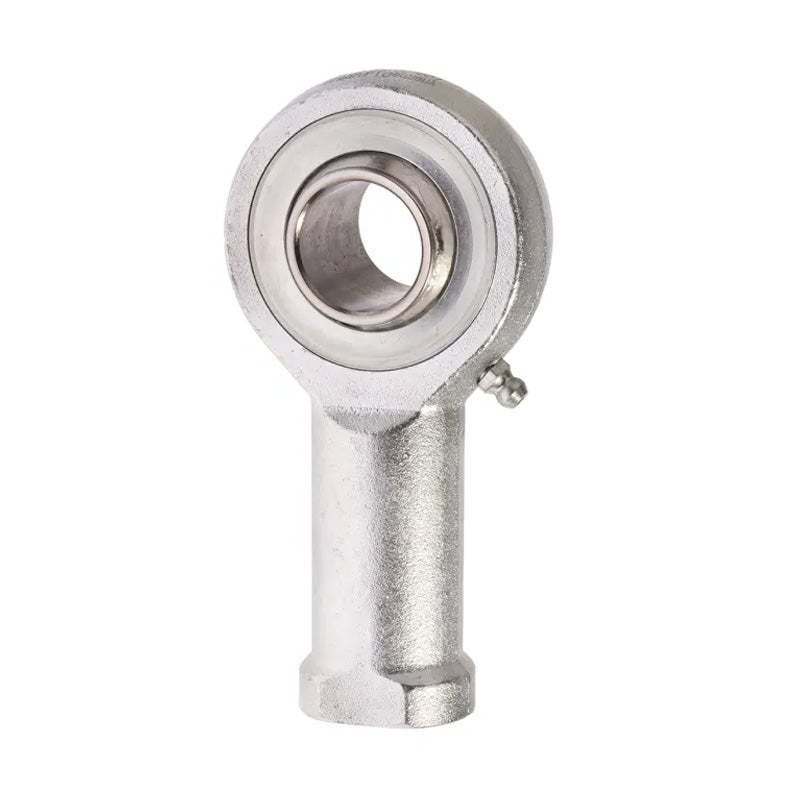

Durbal BRTF16-90-501 Right Hand Metric Stainless Steel Full Complement Female Rod End M16 Thread

DURBAL Heavy-Duty Full Complement Stainless Steel Female Rod Ends with Integral Self-Aligning Roller Bearing: Threaded female rod end consisting of a forged, electropolished stainless steel housing with hardened super-finished stainless steel ball bearings running in a steel raceway. For high speeds, wide swivelling angles or rotating movements, In contrast to the cage design, the full complement design is suitable for higher loads but with a lower speed threshold. Made of forged stainless steel, extremely high loads resistant and surface electropolished which ensures you a very high corrosion resistance. Low maintenance due to long-term lubrication with food-grade approval; the rod ends can be greased subsequently by means of a funnel or conical grease nipple. Connection Dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -45° C to +120° C.
Benefits: Covering discs in stainless steel on both sides to prevent the penetration of coarse dirt particles inside the bearing.

Brand / Quality:

Durbal - High Quality

Thread Size:

M16

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

16mm
