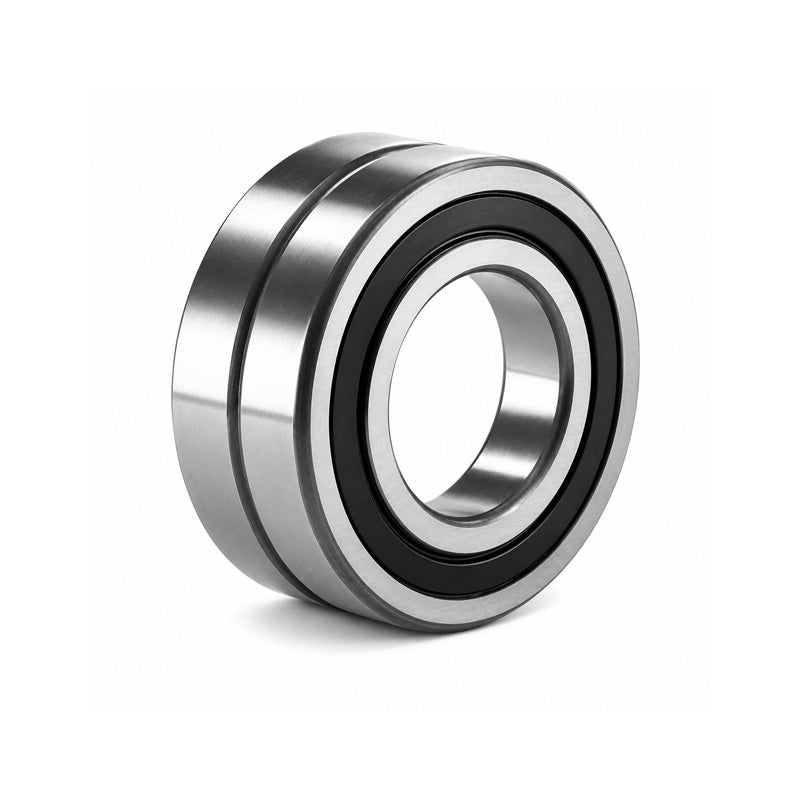

• SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm
1 1

SKU: BS2-2210-2CSK/VT143-SKF

SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm

SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm
CHF 118.00 ex VAT
CHF 118.00 ex VAT
Sale Sold out

Equivalent to: BS222102RSK/VT143 22210K-2RS

In stock

Price Break
3+ CHF 93.27
4+ CHF 88.03
9+ CHF 86.98
19+ CHF 85.93
29+ CHF 84.89
39+ CHF 83.84
49+ CHF 78.60
59+ CHF 77.55
249+ CHF 76.50
499+ CHF 75.45
999+ CHF 73.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Equivalent: BS222102RSK/VT143 22210K-2RS
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
28mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 50mm
D 90mm
B 28mm
D1 82.1mm
d2 58mm
r1r2 min 1.1mm
b 5.5mm
K 3mm
da min 57mm
da max 58mm
Da max 83mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 104 kN
Static load Co 108 kN
Fatigue load limit Pu 11.8 kN
Limiting speed 1900 rpm
Weight 0.7 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310E+sleeve>H310E</a>
