SKU: BS2-2211-2CS/VT143-SKF

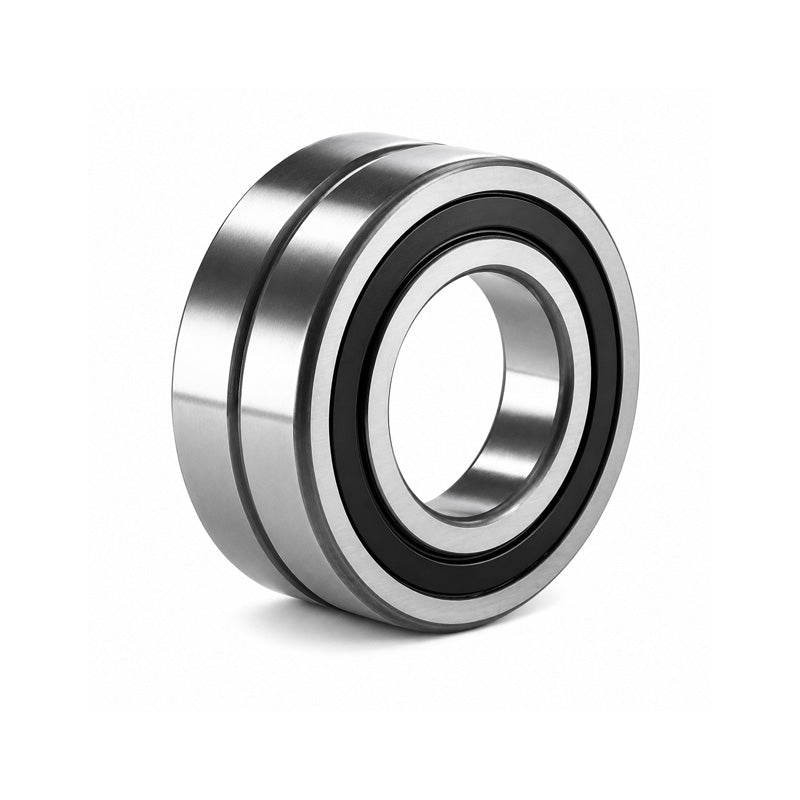

SKF BS222112CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 55x100x31mm
SKF BS222112CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 55x100x31mm
Regular price
CHF 130.04
ex VAT
Regular price
Sale price
CHF 130.04
ex VAT
Equivalent to: BS222112RS/VT143
In stock
Price Break
10+
CHF 115.74
19+
CHF 109.23
29+
CHF 107.93
39+
CHF 106.63
49+
CHF 105.33
74+
CHF 104.03
99+
CHF 97.53
199+
CHF 96.23
249+
CHF 94.93
499+
CHF 93.63
999+
CHF 91.03
Couldn't load pickup availability
Description
Description
|
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed |
Equivalent: BS222112RS/VT143
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 31mm |
| D1 | 91.9mm |
| d2 | 64mm |
| r1r2 min | 1.5mm |
| b | 5.5mm |
| K | 3mm |
| da min | 64mm |
| da max | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 125 kN |
| Static load Co | 127 kN |
| Fatigue load limit Pu | 13.7 kN |
| Limiting speed | 1700 rpm |
| Weight | 1 kg |
| --- | Factors |
| Calculation factor e | 0.24 |
| Calculation factor Y1 | 2.8 |
| Calculation factor Y2 | 4.2 |
| Calculation factor Y0 | 2.8 |
