SKU: BS2-2211-2CSK/VT143-SKF

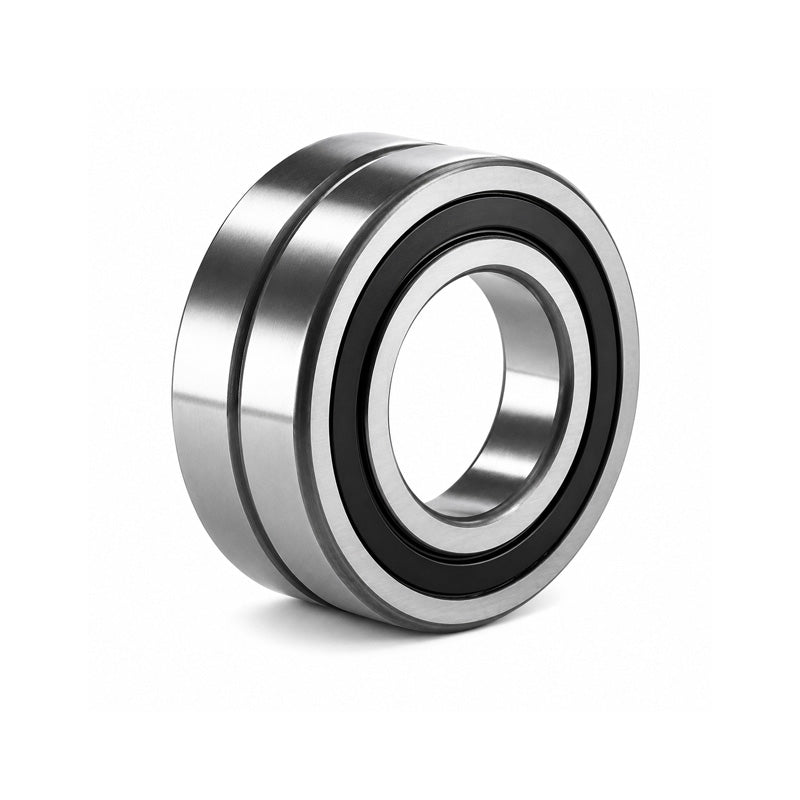

SKF BS222112CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 55x100x31mm
SKF BS222112CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 55x100x31mm
Regular price
CHF 130.00
ex VAT
Regular price
Sale price
CHF 130.00
ex VAT
Equivalent to: BS222112RSK/VT143 22211K-2RS
In stock
Price Break
3+
CHF 103.18
4+
CHF 97.38
9+
CHF 96.22
19+
CHF 95.06
29+
CHF 93.90
39+
CHF 92.74
49+
CHF 86.95
59+
CHF 85.79
249+
CHF 84.63
499+
CHF 83.47
999+
CHF 81.15
Share this product
Description
Description
|
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed |
Equivalent: BS222112RSK/VT143 22211K-2RS
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 31mm |
| D1 | 91.9mm |
| d2 | 64mm |
| r1r2 min | 1.5mm |
| b | 5.5mm |
| K | 3mm |
| da min | 64mm |
| da max | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 125 kN |
| Static load Co | 127 kN |
| Fatigue load limit Pu | 13.7 kN |
| Limiting speed | 1700 rpm |
| Weight | 1 kg |
| --- | Factors |
| Calculation factor e | 0.24 |
| Calculation factor Y1 | 2.8 |
| Calculation factor Y2 | 4.2 |
| Calculation factor Y0 | 2.8 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H311E+sleeve>H311E</a> |
