SKU: BS2-2212-2CS/VT143-SKF

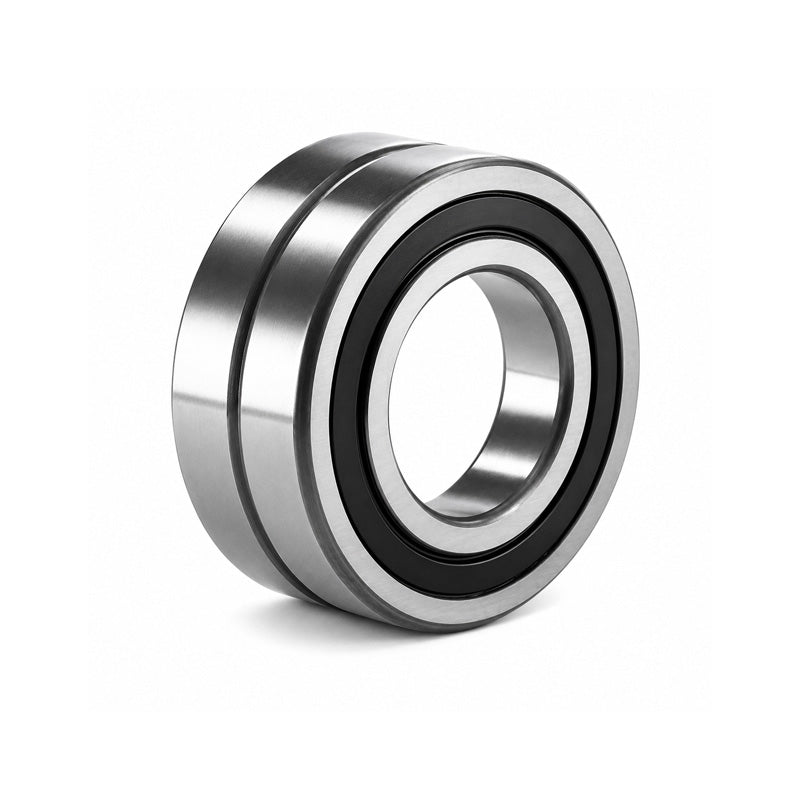

SKF BS222122CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 60x110x34mm

Name: SKF BS222122CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 60x110x34mm
Brand: SKF
SKU: BS2-2212-2CS/VT143-SKF
Price: 158.00 CHF
Availability: InStock

CHF 158.00 ex VAT

Sale Sold out

Equivalent to: BS222122RS/VT143

In stock

Price Break

3+ CHF 125.84

4+ CHF 118.77

9+ CHF 117.35

19+ CHF 115.94

29+ CHF 114.53

39+ CHF 113.11

49+ CHF 106.04

59+ CHF 104.63

249+ CHF 103.21

499+ CHF 101.80

999+ CHF 98.97

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Equivalent: BS222122RS/VT143

Brand / Quality:: SKF - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 110mm
Width:: 34mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	60mm
D	110mm
B	34mm
D1	102mm
d2	69mm
r1r2 min	1.5mm
b	5.5mm
K	3mm
da min	69mm
da max	69mm
Da max	101mm
ra max	1.5mm
---	Speeds, Loads and Weights
Dynamic load C	156 kN
Static load Co	166 kN
Fatigue load limit Pu	18.6 kN
Limiting speed	1600 rpm
Weight	1.3 kg
---	Factors
Calculation factor e	0.24
Calculation factor Y1	2.8
Calculation factor Y2	4.2
Calculation factor Y0	2.8
