SKU: BS2-2214-2CSK/VT143-SKF

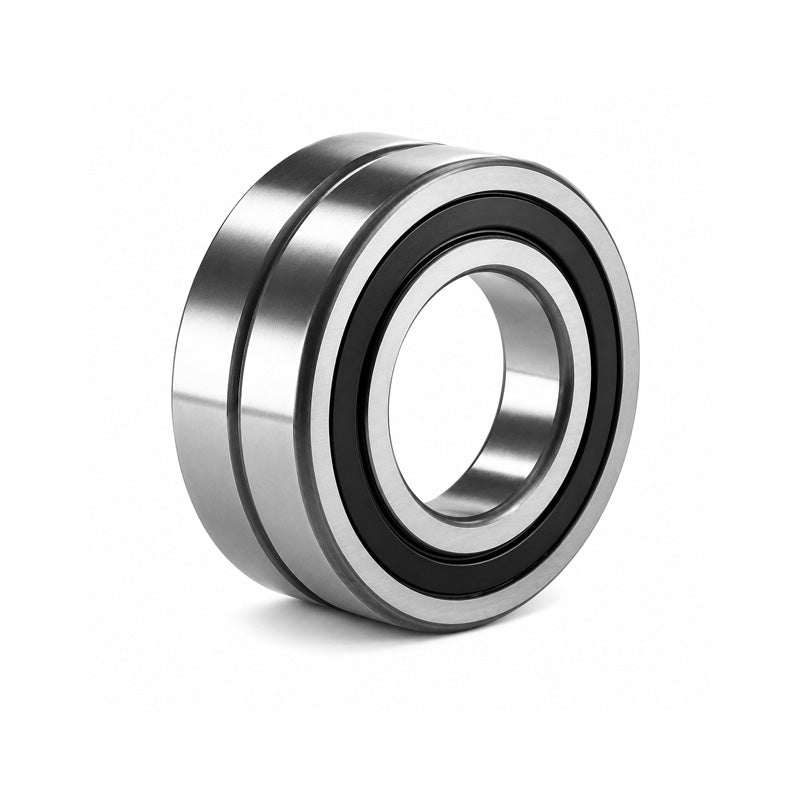

SKF BS222142CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 70x125x38mm
SKF BS222142CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 70x125x38mm
Regular price
CHF 216.00
ex VAT
Regular price
Sale price
CHF 216.00
ex VAT
Equivalent to: BS222142RSK/VT143 22214K-2RS
In stock
Price Break
3+
CHF 171.64
4+
CHF 161.99
9+
CHF 160.06
19+
CHF 158.14
29+
CHF 156.21
39+
CHF 154.28
49+
CHF 144.64
59+
CHF 142.71
249+
CHF 140.78
499+
CHF 138.85
999+
CHF 134.99
Share this product
Description
Description
|
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed |
Equivalent: BS222142RSK/VT143 22214K-2RS
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 38mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 70mm |
| D | 125mm |
| B | 38mm |
| D1 | 115mm |
| d2 | 80mm |
| r1r2 min | 1.5mm |
| b | 5.5mm |
| K | 3mm |
| da min | 79mm |
| da max | 80mm |
| Da max | 116mm |
| ra max | 1.5mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 208 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 25.5 kN |
| Limiting speed | 1400 rpm |
| Weight | 1.8 kg |
| --- | Factors |
| Calculation factor e | 0.23 |
| Calculation factor Y1 | 2.9 |
| Calculation factor Y2 | 4.4 |
| Calculation factor Y0 | 2.8 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H314E+sleeve>H314E</a> |
