• SKF BS222152CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 75x130x38mm
1 1

SKU: BS2-2215-2CS/VT143-SKF

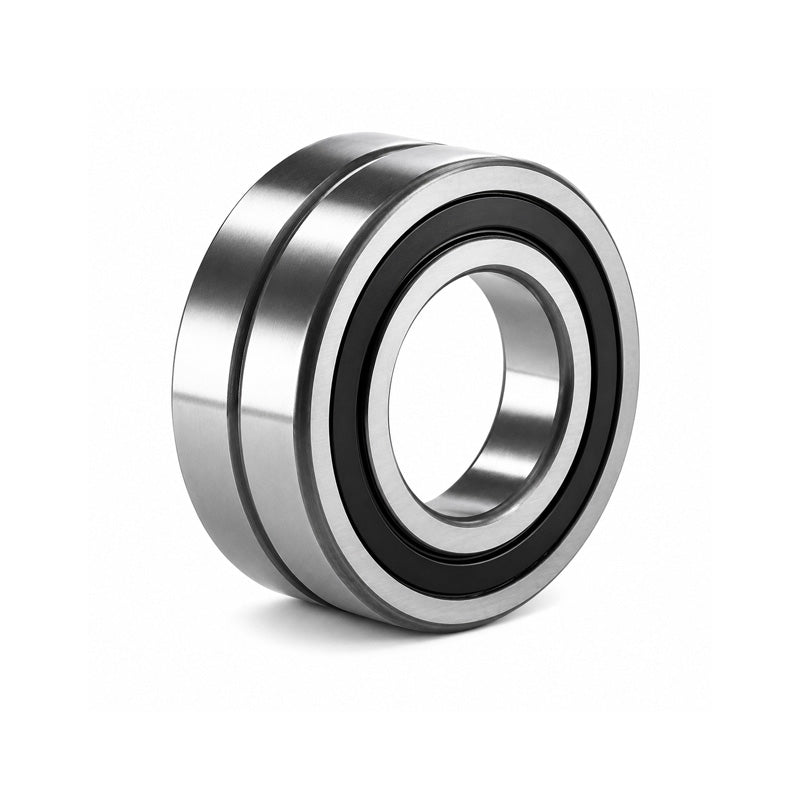

SKF BS222152CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 75x130x38mm

SKF BS222152CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 75x130x38mm
CHF 237.00 ex VAT
CHF 237.00 ex VAT
Sale Sold out

Equivalent to: BS222152RS/VT143

In stock

Price Break
3+ CHF 188.37
4+ CHF 177.78
9+ CHF 175.67
19+ CHF 173.55
29+ CHF 171.43
39+ CHF 169.32
49+ CHF 158.74
59+ CHF 156.62
249+ CHF 154.50
499+ CHF 152.39
999+ CHF 148.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Equivalent: BS222152RS/VT143
Brand / Quality:
SKF - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
38mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 75mm
D 130mm
B 38mm
D1 119mm
d2 84mm
r1r2 min 1.5mm
b 5.5mm
K 3mm
da min 84mm
da max 84mm
Da max 121mm
ra max 1.5mm
--- Speeds, Loads and Weights
Dynamic load C 212 kN
Static load Co 240 kN
Fatigue load limit Pu 26.5 kN
Limiting speed 1300 rpm
Weight 2.1 kg
--- Factors
Calculation factor e 0.22
Calculation factor Y1 3
Calculation factor Y2 4.6
Calculation factor Y0 2.8
