SKU: BS2-2216-2CS/VT143-SKF

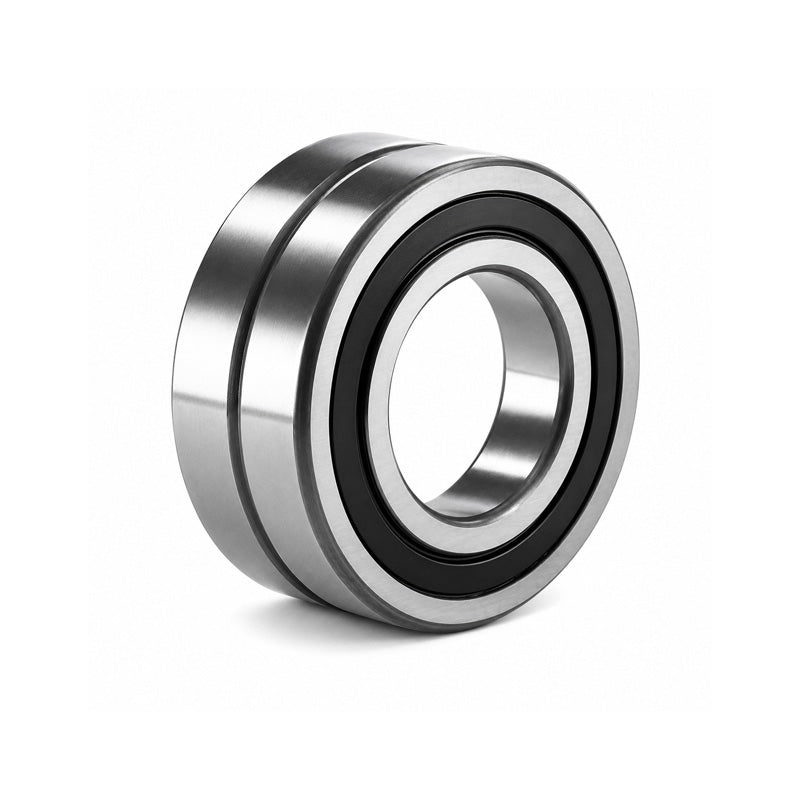

SKF BS222162CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 80x140x40mm

Name: SKF BS222162CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 80x140x40mm
Brand: SKF
SKU: BS2-2216-2CS/VT143-SKF
Price: 239.00 CHF
Availability: InStock

CHF 239.00 ex VAT

Sale Sold out

Equivalent to: BS222162RS/VT143

In stock

Price Break

3+ CHF 189.81

4+ CHF 179.15

9+ CHF 177.02

19+ CHF 174.88

29+ CHF 172.75

39+ CHF 170.62

49+ CHF 159.95

59+ CHF 157.82

249+ CHF 155.69

499+ CHF 153.56

999+ CHF 149.29

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Equivalent: BS222162RS/VT143

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 140mm
Width:: 40mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

---	Dimensions
d	80mm
D	140mm
B	40mm
D1	128mm
d2	91.5mm
r1r2 min	2mm
b	5.5mm
K	3mm
da min	91mm
da max	91.5mm
Da max	129mm
ra max	2mm
---	Speeds, Loads and Weights
Dynamic load C	236 kN
Static load Co	270 kN
Fatigue load limit Pu	29 kN
Limiting speed	1200 rpm
Weight	2.4 kg
---	Factors
Calculation factor e	0.22
Calculation factor Y1	3
Calculation factor Y2	4.6
Calculation factor Y0	2.8
