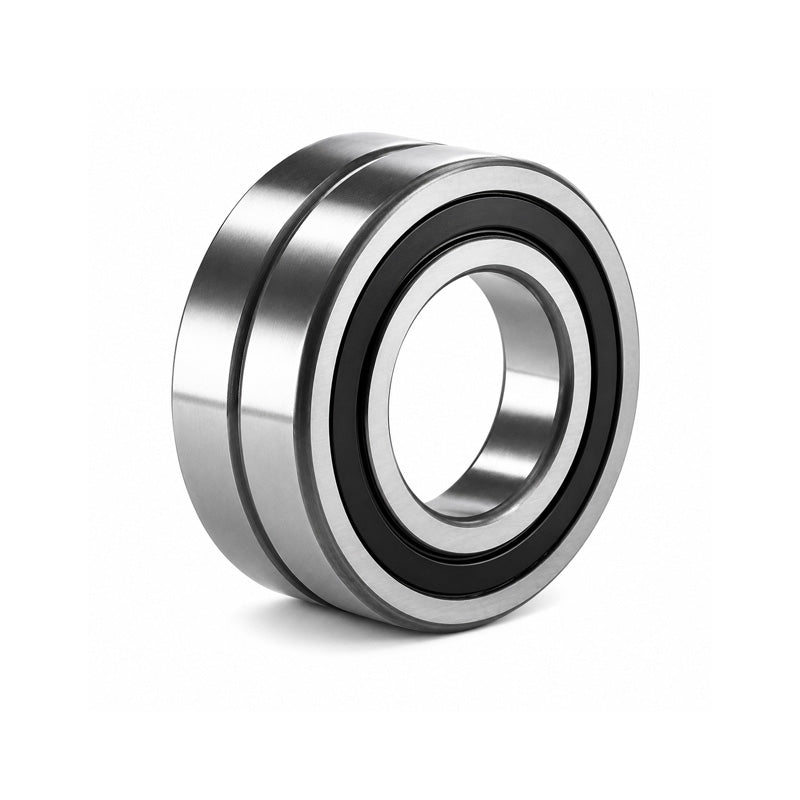

• SKF BS222162CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 80x140x40mm
1 1

SKU: BS2-2216-2CSK/VT143-SKF

SKF BS222162CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 80x140x40mm

SKF BS222162CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 80x140x40mm
CHF 264.00 ex VAT
CHF 264.00 ex VAT
Sale Sold out

Equivalent to: BS222162RSK/VT143 22216K-2RS

In stock

Price Break
3+ CHF 209.67
4+ CHF 197.90
9+ CHF 195.54
19+ CHF 193.18
29+ CHF 190.83
39+ CHF 188.47
49+ CHF 176.69
59+ CHF 174.34
249+ CHF 171.98
499+ CHF 169.62
999+ CHF 164.91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options, rubber sealed

Equivalent: BS222162RSK/VT143 22216K-2RS
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
140mm
Width:
40mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 80mm
D 140mm
B 40mm
D1 128mm
d2 91.5mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 91mm
da max 91.5mm
Da max 129mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 236 kN
Static load Co 270 kN
Fatigue load limit Pu 29 kN
Limiting speed 1200 rpm
Weight 2.4 kg
--- Factors
Calculation factor e 0.22
Calculation factor Y1 3
Calculation factor Y2 4.6
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H316E+sleeve>H316E</a>
