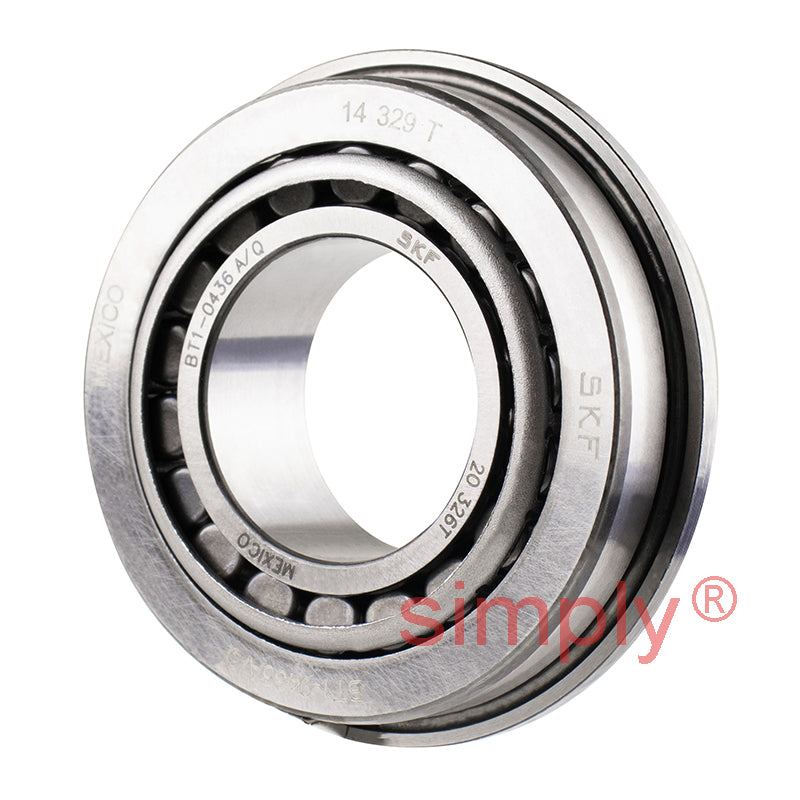

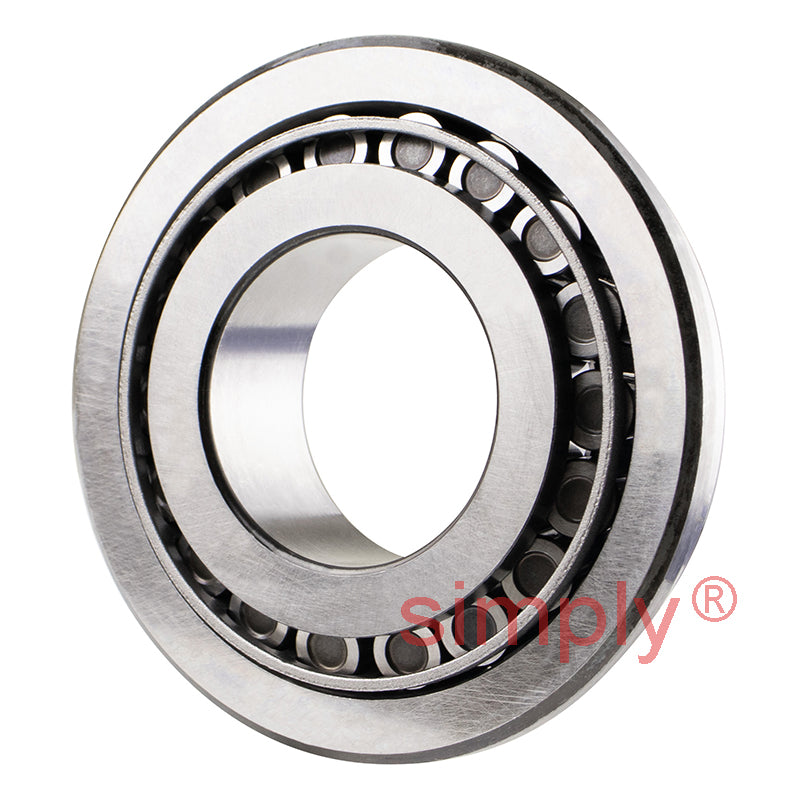

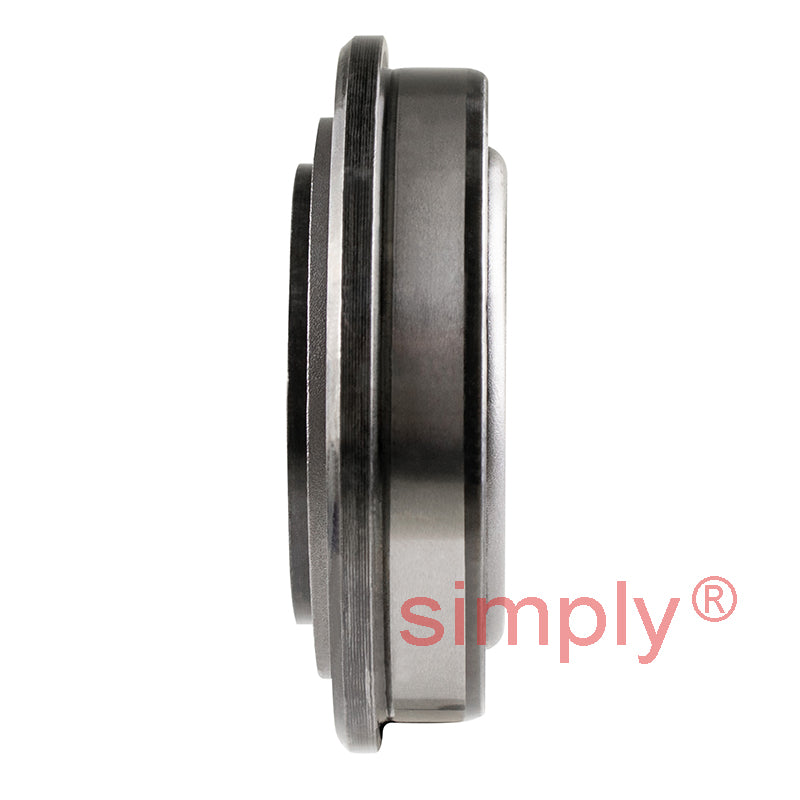

SKF BT1-0436A Metric Taper Roller Bearing with Flanged Outer Ring 31.75x64x18mm
SKF BT1-0436A Metric Taper Roller Bearing with Flanged Outer Ring 31.75x64x18mm
Regular price
CHF 107.00
ex VAT
Regular price
Sale price
CHF 107.00
ex VAT
In stock
Price Break
10+
CHF 85.17
19+
CHF 80.39
29+
CHF 79.43
39+
CHF 78.47
49+
CHF 77.52
74+
CHF 76.56
99+
CHF 71.78
199+
CHF 70.82
249+
CHF 69.86
499+
CHF 68.90
999+
CHF 66.99
Share this product
Description
Description
|
SKF Taper Roller Bearings with Flanged Outer Ring: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm
- Outside Diameter:
- 64mm
- Width:
- 18mm
- Seals / Shields:
- None
Technical
Technical
| d | 31.75mm |
|---|---|
| D | 64mm |
| T | 18mm |
| Dynamic load | 374 kN |
| Static load | 800 kN |
| Fatigue load limit Pu | 6.2 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.3 kg |
