SKU: C-UCF207D1-NTN

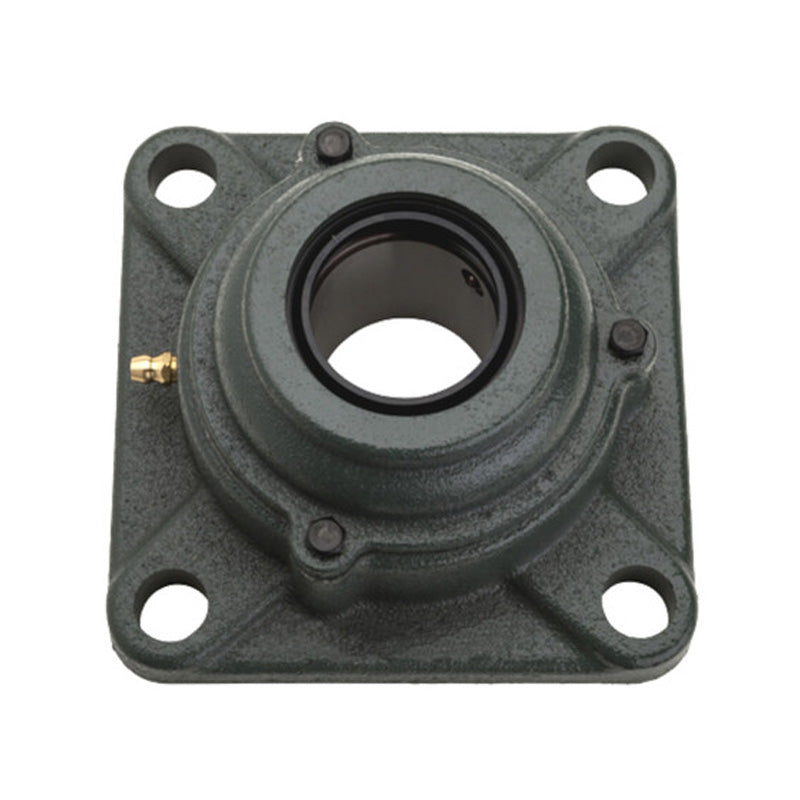

NTN C-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF207D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 47.00
ex VAT
Regular price
Sale price
CHF 47.00
ex VAT
In stock
Price Break
3+
CHF 37.11
4+
CHF 35.03
9+
CHF 34.61
19+
CHF 34.19
49+
CHF 33.78
99+
CHF 33.36
499+
CHF 31.28
999+
CHF 30.86
1999+
CHF 30.44
2999+
CHF 30.02
4999+
CHF 29.19
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| L | 117mm |
| J | 92mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 15mm |
| A | 34mm |
| N | 14mm |
| B | 42.9mm |
| S | 17.5mm |
| A<sub>5</sub> | 59mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.8 kg |
