SKU: C-UCF210D1-NTN

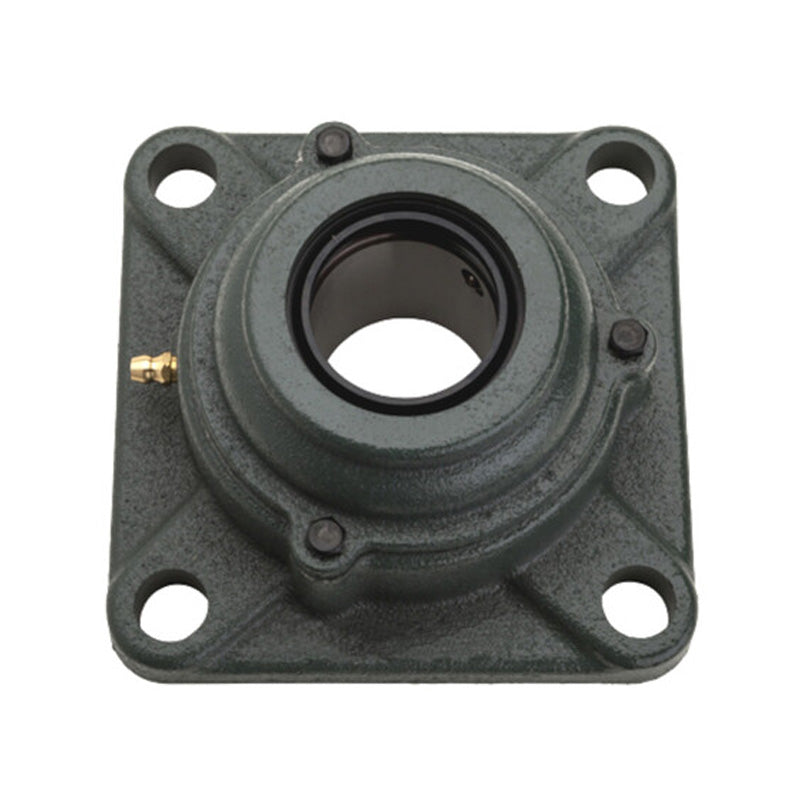

NTN C-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 66.00
ex VAT
Regular price
Sale price
CHF 66.00
ex VAT
In stock
Price Break
3+
CHF 51.84
4+
CHF 48.93
9+
CHF 48.35
19+
CHF 47.77
49+
CHF 47.18
99+
CHF 46.60
499+
CHF 43.69
999+
CHF 43.11
1999+
CHF 42.52
2999+
CHF 41.94
4999+
CHF 40.78
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| L | 143mm |
| J | 111mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| B | 51.6mm |
| S | 19mm |
| A<sub>5</sub> | 72mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 3 kg |
