SKU: C-UCF315D1-NTN

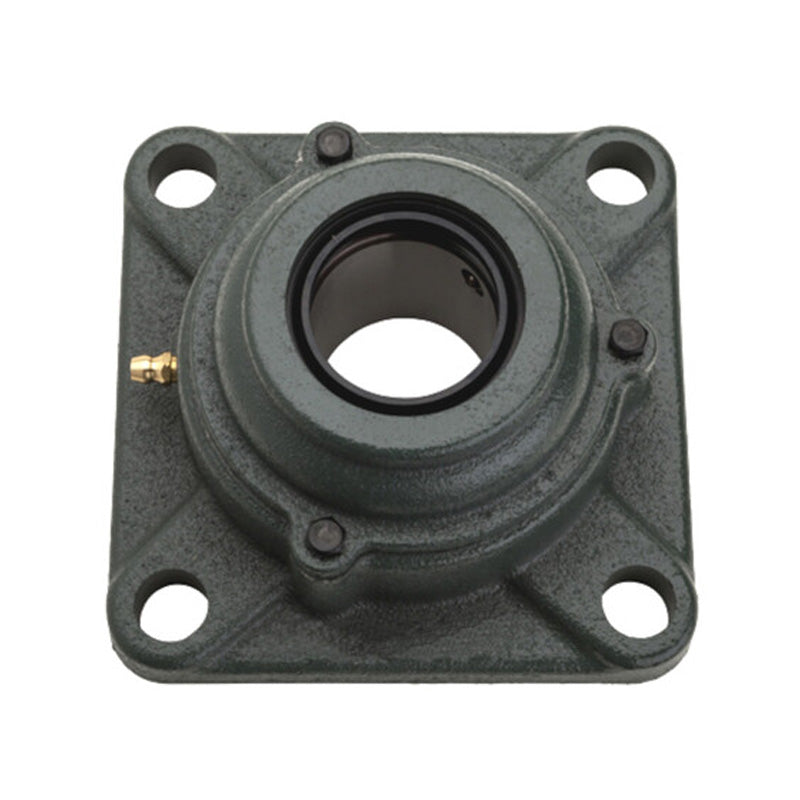

NTN C-UCF315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCF315D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 347.00
ex VAT
Regular price
Sale price
CHF 347.00
ex VAT
In stock
Price Break
3+
CHF 307.26
4+
CHF 294.84
9+
CHF 288.63
19+
CHF 279.32
49+
CHF 273.12
99+
CHF 257.60
499+
CHF 217.25
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCF
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| L | 236mm |
| J | 184mm |
| A<sub>2</sub> | 39mm |
| A<sub>1</sub> | 25mm |
| A | 66mm |
| N | 25mm |
| B | 82mm |
| S | 32mm |
| A<sub>5</sub> | 114mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 126 kN |
| Static load C<sub>0r</sub> | 77 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 13 kg |
