SKU: C-UCFS309D1-NTN

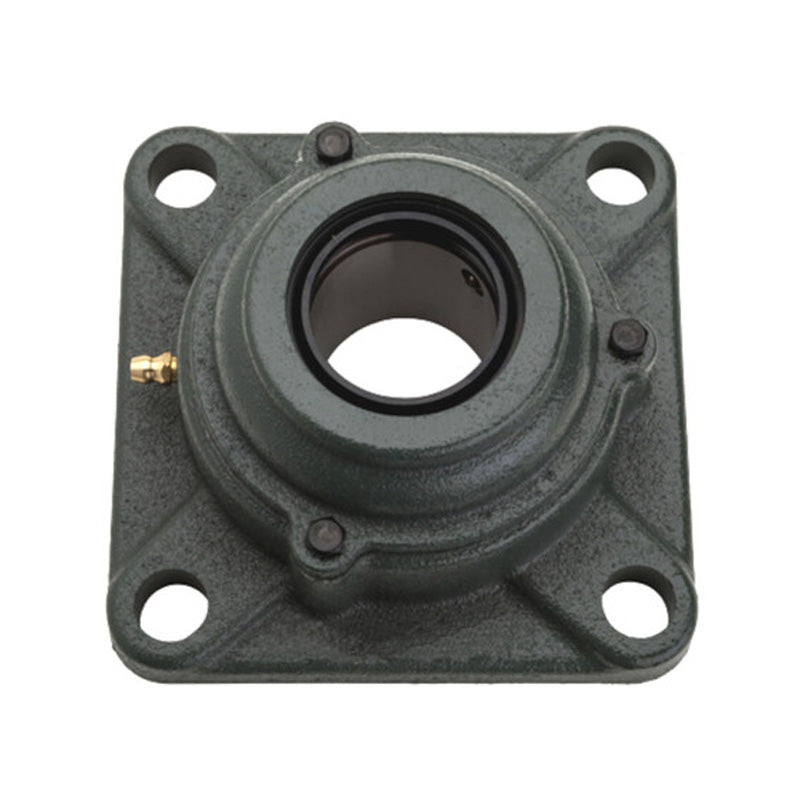

NTN C-UCFS309D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS309D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 173.94
ex VAT
Regular price
Sale price
CHF 173.94
ex VAT
In stock
Price Break
5+
CHF 172.20
10+
CHF 165.24
20+
CHF 161.76
50+
CHF 156.55
100+
CHF 153.07
500+
CHF 144.37
1000+
CHF 121.76
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFS
- Bolt Hole Centres:
- 125mm
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| L | 160mm |
| J | 125mm |
| A<sub>2</sub> | 14mm |
| N | 19mm |
| A<sub>3</sub> | 11mm |
| A<sub>1</sub> | 18mm |
| H<sub>3</sub> | 125mm |
| B | 57mm |
| S | 22mm |
| Fixing bolt | M16 |
| A<sub>5</sub> | 80mm |
| Mass | 4.7 kg |
