SKU: C-UCFS310D1-NTN

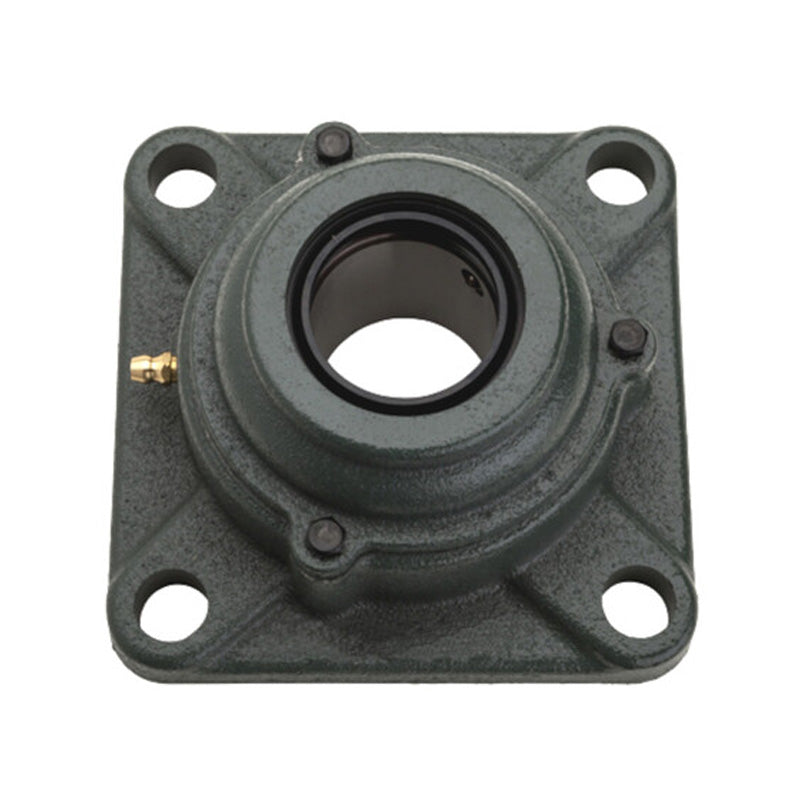

NTN C-UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 198.94
ex VAT
Regular price
Sale price
CHF 198.94
ex VAT
In stock
Price Break
5+
CHF 196.95
10+
CHF 188.99
20+
CHF 185.01
50+
CHF 179.05
100+
CHF 175.07
500+
CHF 165.12
1000+
CHF 139.26
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFS
- Bolt Hole Centres:
- 132mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 175mm |
| J | 132mm |
| A<sub>2</sub> | 16mm |
| N | 23mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 19mm |
| H<sub>3</sub> | 140mm |
| B | 61mm |
| S | 22mm |
| Fixing bolt | M20 |
| A<sub>5</sub> | 88mm |
| Mass | 6.2 kg |
