SKU: C-UCP212D1-NTN

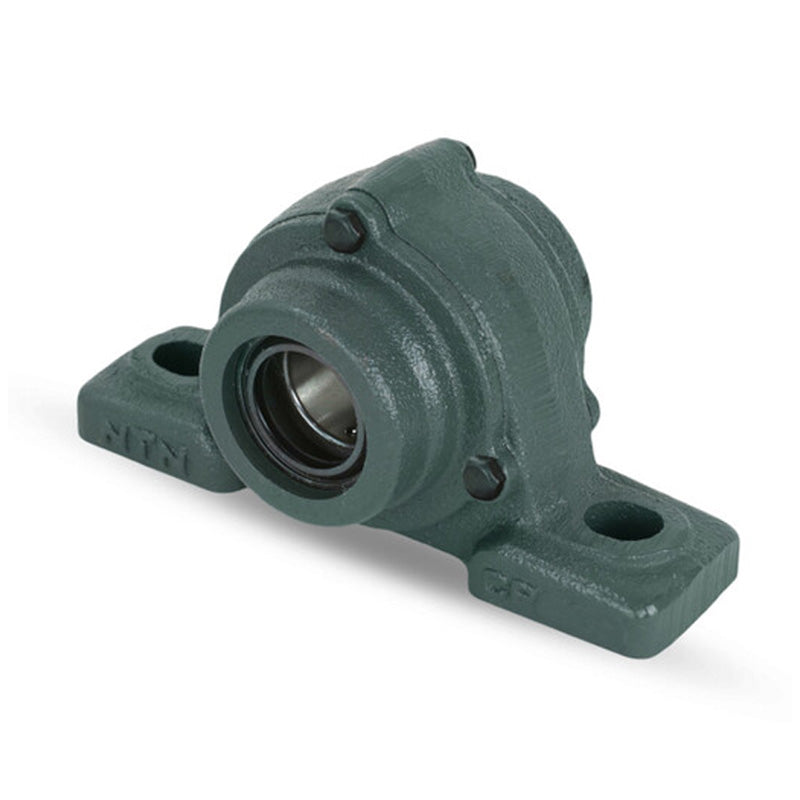

NTN C-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCP212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 108.00
ex VAT
Regular price
Sale price
CHF 108.00
ex VAT
In stock
Price Break
3+
CHF 85.41
4+
CHF 80.61
9+
CHF 79.66
19+
CHF 78.70
49+
CHF 77.74
99+
CHF 76.78
499+
CHF 71.98
999+
CHF 71.02
1999+
CHF 70.06
2999+
CHF 69.10
4999+
CHF 67.18
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| H | 69.8mm |
| L | 241mm |
| J | 184mm |
| A | 70mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 25mm |
| H<sub>2</sub> | 138mm |
| L<sub>1</sub> | 70mm |
| B | 65.1mm |
| S | 25.4mm |
| H<sub>3</sub> | 143mm |
| A<sub>5</sub> | 115mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 6 kg |
