SKU: C-UCT211D1-NTN

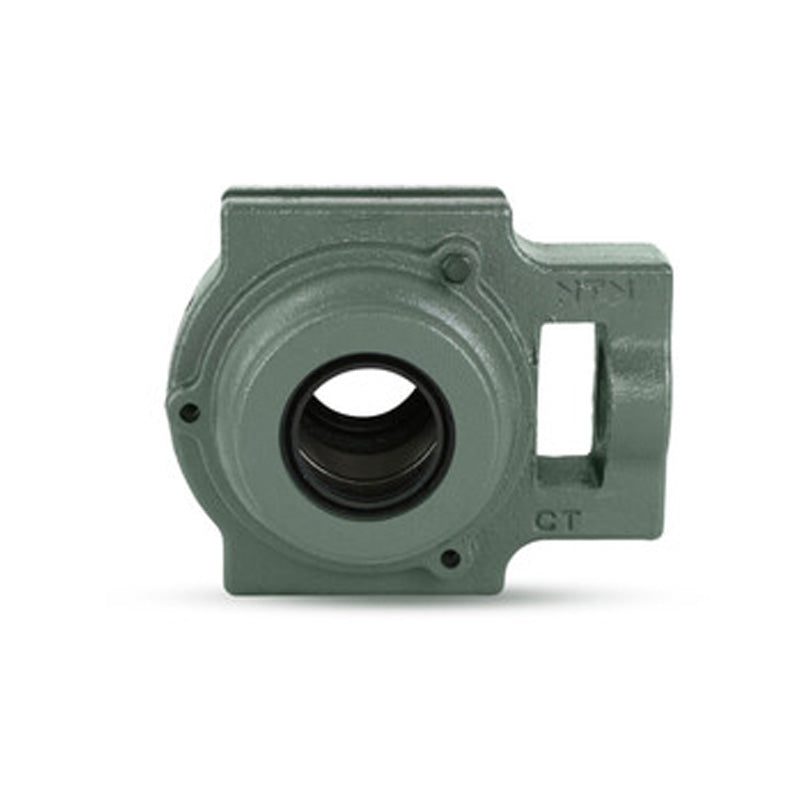

NTN C-UCT211D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT211D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
3+
CHF 109.74
4+
CHF 105.31
9+
CHF 103.09
19+
CHF 99.77
49+
CHF 97.55
99+
CHF 92.01
499+
CHF 77.60
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| N<sub>1</sub> | 25mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 95mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 171mm |
| A<sub>2</sub> | 38mm |
| A | 64mm |
| r | 65mm |
| L<sub>1</sub> | 106mm |
| B | 55.6mm |
| S | 22.2mm |
| L<sub>4</sub> | 171.51mm |
| A<sub>5</sub> | mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 5 kg |
