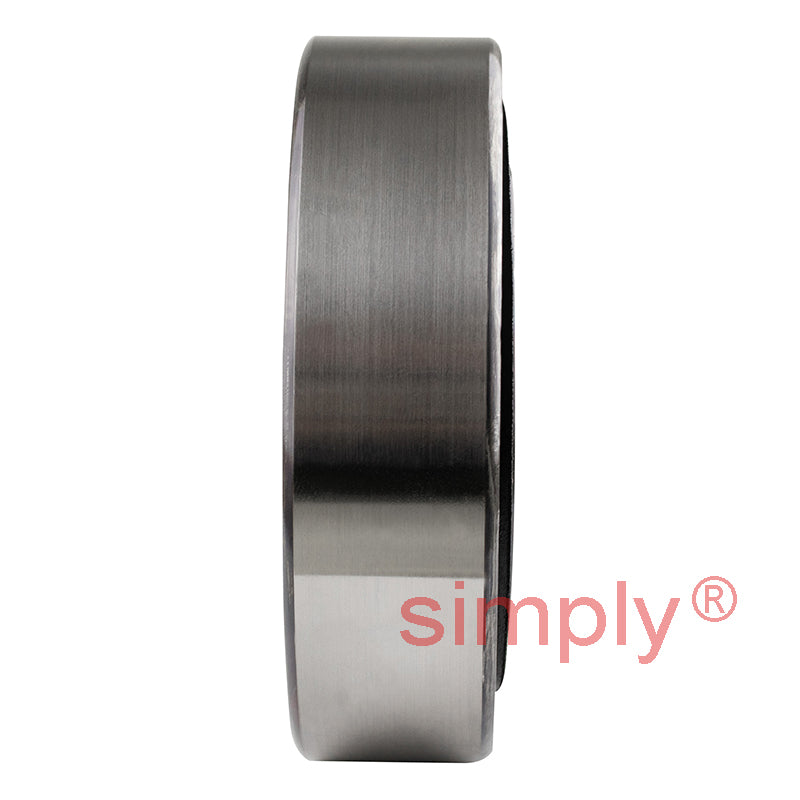

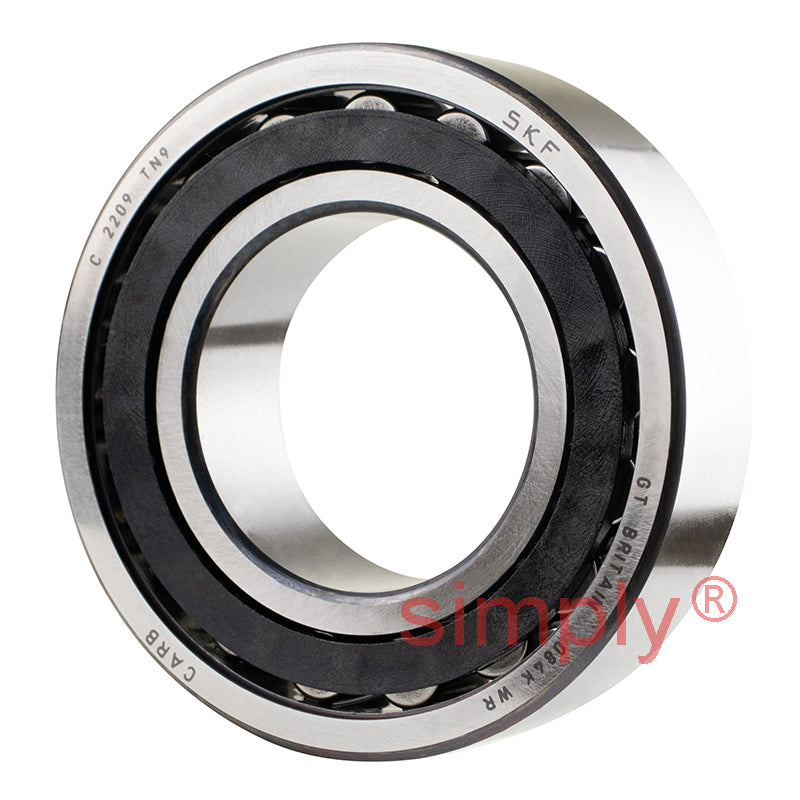

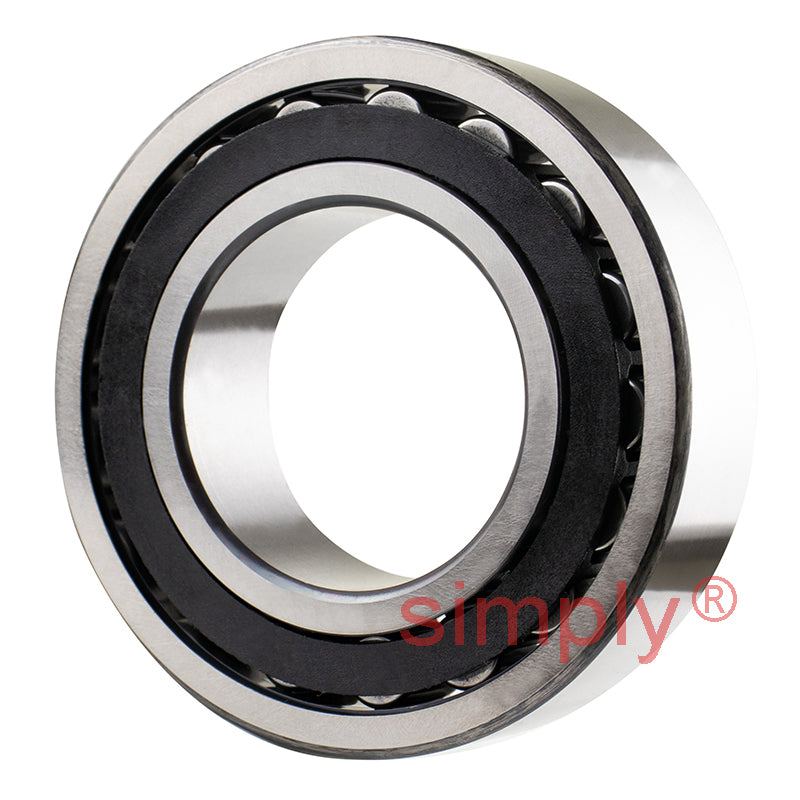

SKF C2209TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 45x85x23mm Allow 7-10 Days
SKF C2209TN9 Carb Toroidal Roller Bearing with Cylindrical Bore 45x85x23mm Allow 7-10 Days
Regular price
CHF 86.00
ex VAT
Regular price
Sale price
CHF 86.00
ex VAT
In stock
Price Break
10+
CHF 67.77
19+
CHF 63.97
29+
CHF 63.20
39+
CHF 62.44
49+
CHF 61.68
74+
CHF 60.92
99+
CHF 57.11
199+
CHF 56.35
249+
CHF 55.59
499+
CHF 54.83
999+
CHF 53.31
Share this product
Description
Description
|
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 93 kN |
| Static load Co | 93 kN |
| Fatigue load limit Pu | 10.8 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 11000 rpm |
| d2 | 55.6mm |
| D1 | 73.1mm |
| r1r2 min | 1.1mm |
| s1 | 7.1mm |
| da min | 52mm |
| da max | 55mm |
| Da min | 71mm |
| Da max | 78mm |
| Ca | 0.3mm |
| ra max | 1mm |
| Misalignment factor k1 | 0.095 |
| Operating clearance factor k2 | 0.128 |
| Weight | 0.55 kg |
