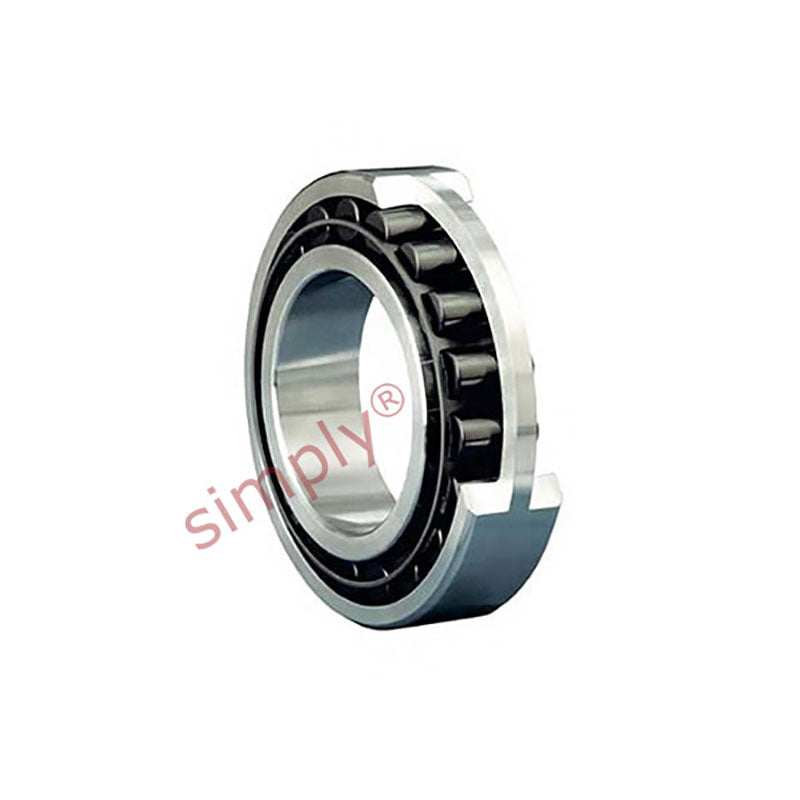

• SKF C2213V Carb Toroidal Roller Bearing with Cylindrical Bore 65x120x31mm Allow 7-10 Days
1 1

SKU: C2213V-SKF

SKF C2213V Carb Toroidal Roller Bearing with Cylindrical Bore 65x120x31mm Allow 7-10 Days

SKF C2213V Carb Toroidal Roller Bearing with Cylindrical Bore 65x120x31mm Allow 7-10 Days
CHF 260.00 ex VAT
CHF 260.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 206.67
19+ CHF 195.06
29+ CHF 192.74
39+ CHF 190.42
49+ CHF 188.09
74+ CHF 185.77
99+ CHF 174.16
199+ CHF 171.84
249+ CHF 169.52
499+ CHF 167.19
999+ CHF 162.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
31mm
Seals / Shields:
None
Technical
d 65mm
D 120mm
B 31mm
Dynamic load C 204 kN
Static load Co 216 kN
Fatigue load limit Pu 25.5 kN
Limiting speed 2400 rpm
d2 79mm
D1 106mm
r1r2 min 1.5mm
s1 9.6mm
s2 5.3mm
da min 74mm
da max 97mm
Da max 111mm
ra max 1.5mm
Misalignment factor k1 0.097
Operating clearance factor k2 0.127
Weight 1.47 kg
