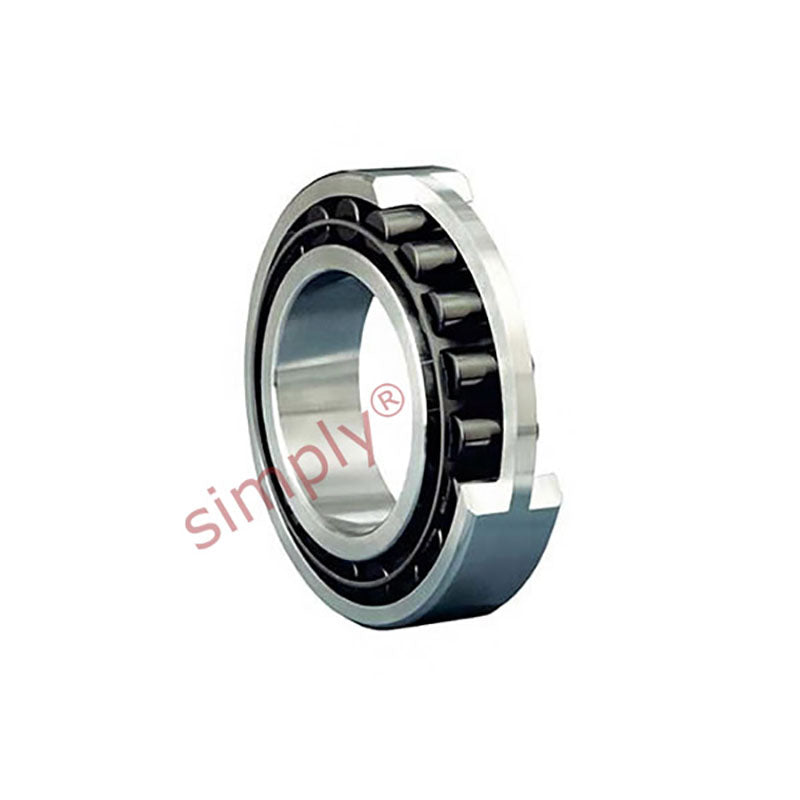

• SKF C4026K30V Carb Toroidal Roller Bearing with Taper Bore 130x200x69mm Allow 7-10 Days
1 1

SKU: C4026K30V-SKF

SKF C4026K30V Carb Toroidal Roller Bearing with Taper Bore 130x200x69mm Allow 7-10 Days

SKF C4026K30V Carb Toroidal Roller Bearing with Taper Bore 130x200x69mm Allow 7-10 Days
CHF 1,168.00 ex VAT
CHF 1,168.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 930.04
19+ CHF 877.79
29+ CHF 867.34
39+ CHF 856.89
49+ CHF 846.44
74+ CHF 835.99
99+ CHF 783.74
199+ CHF 773.29
249+ CHF 762.84
499+ CHF 752.39
999+ CHF 731.49
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
130mm
Outside Diameter:
200mm
Width:
69mm
Seals / Shields:
None
Technical
--- Dimensions
d 130mm
D 200mm
B 69mm
d2 149mm
D1 181mm
r1r2 min 2mm
s1 11.4mm
s2 4.6mm
da min 139mm
da max 165mm
Da max 191mm
ra max 2mm
--- Speeds and Loads
Dynamic load C 720 kN
Static load Co 1120 kN
Fatigue load limit Pu 112 kN
Limiting speed 850 rpm
--- Factors
Misalignment factor k1 0.113
Operating clearance factor k2 0.097
--- Weights
Weight 8.05 kg
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH24026+sleeve>AH24026</a>
