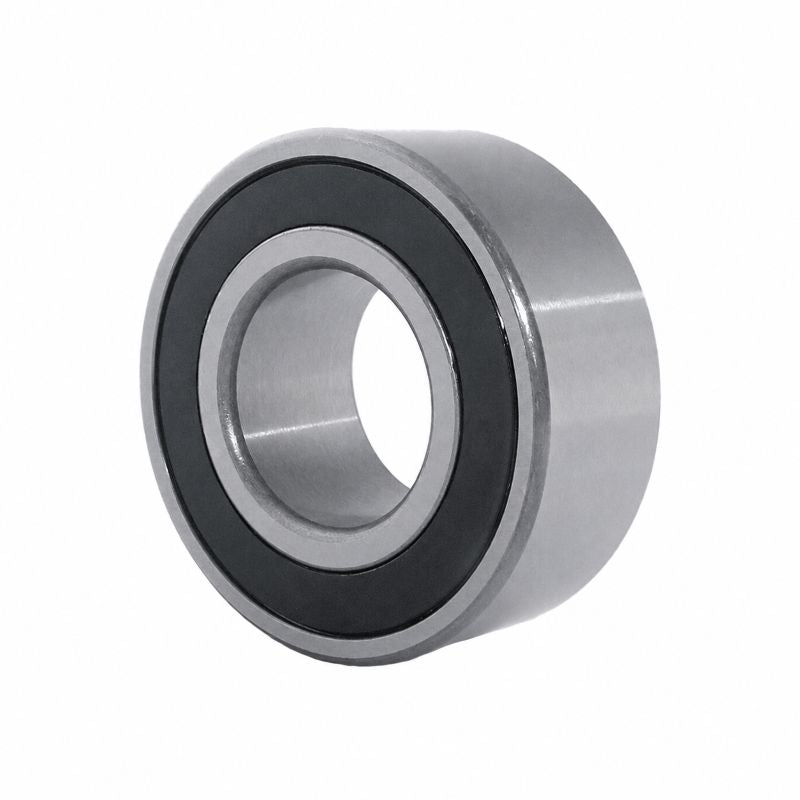

SKF C59182CS5VC3 Sealed Carb Toroidal Roller Bearing 90x125x46mm
SKF C59182CS5VC3 Sealed Carb Toroidal Roller Bearing 90x125x46mm
Regular price
CHF 756.20
ex VAT
Regular price
Sale price
CHF 756.20
ex VAT
In stock
Price Break
10+
CHF 673.02
19+
CHF 635.21
29+
CHF 627.65
39+
CHF 620.08
49+
CHF 612.52
74+
CHF 604.96
99+
CHF 567.15
199+
CHF 559.59
249+
CHF 552.03
499+
CHF 544.46
999+
CHF 529.34
Couldn't load pickup availability
Description
Description
|
SKF Sealed Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 125mm
- Width:
- 46mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 90mm |
|---|---|
| D | 125mm |
| B | 46mm |
| Dynamic load C | 224 kN |
| Static load Co | 400 kN |
| Fatigue load limit Pu | 44 kN |
| Limiting speed | 110 rpm |
| d2 | 102mm |
| D1 | 113mm |
| r1r2 min | 1.1mm |
| s1 | 4.5mm |
| da min | 96mm |
| da max | 101mm |
| Da min | 119mm |
| ra max | 1mm |
| Misalignment factor k1 | 0.089 |
| Operating clearance factor k2 | 0.131 |
| Weight | 1.75 kg |
