SKU: C6915-2CS5V/C3-SKF

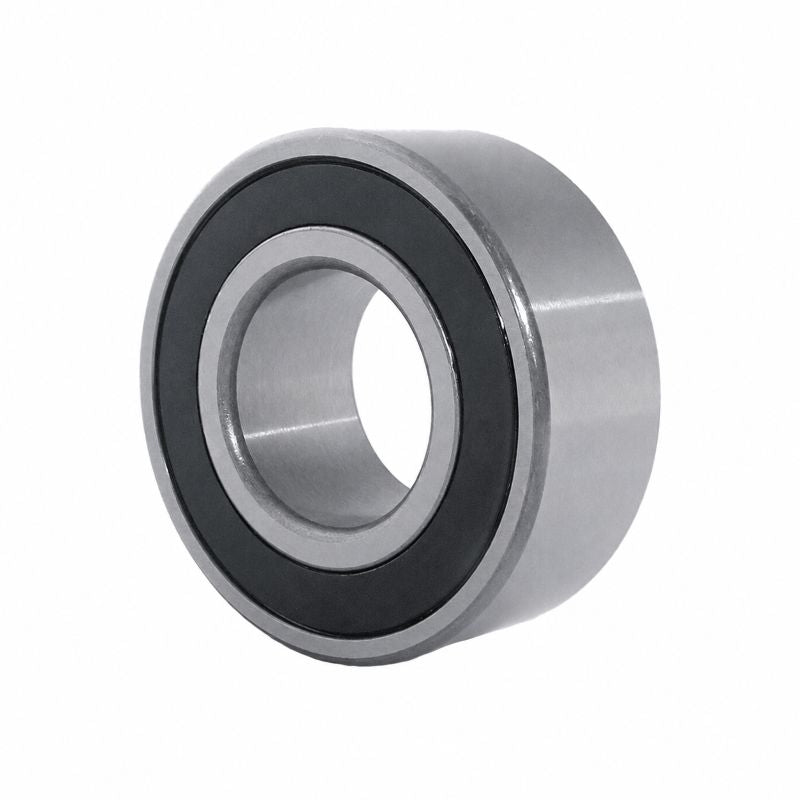

SKF C69152CS5VC3 Sealed Carb Toroidal Roller Bearing 75x105x54mm
SKF C69152CS5VC3 Sealed Carb Toroidal Roller Bearing 75x105x54mm
Regular price
CHF 609.00
ex VAT
Regular price
Sale price
CHF 609.00
ex VAT
In stock
Price Break
10+
CHF 484.71
19+
CHF 457.48
29+
CHF 452.03
39+
CHF 446.59
49+
CHF 441.14
74+
CHF 435.70
99+
CHF 408.47
199+
CHF 403.02
249+
CHF 397.57
499+
CHF 392.13
999+
CHF 381.23
Share this product
Description
Description
|
SKF Sealed Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 54mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 75mm |
|---|---|
| D | 105mm |
| B | 54mm |
| Dynamic load C | 204 kN |
| Static load Co | 325 kN |
| Fatigue load limit Pu | 37.5 kN |
| Limiting speed | 140 rpm |
| d2 | 83.6mm |
| D1 | 95.5mm |
| r1r2 min | 1mm |
| s1 | 7.1mm |
| da min | 79.6mm |
| da max | 83mm |
| Da min | 100mm |
| ra max | 1mm |
| Misalignment factor k1 | 0.073 |
| Operating clearance factor k2 | 0.154 |
| Weight | 1.4 kg |
