SKU: CABUI300Z-SPEC

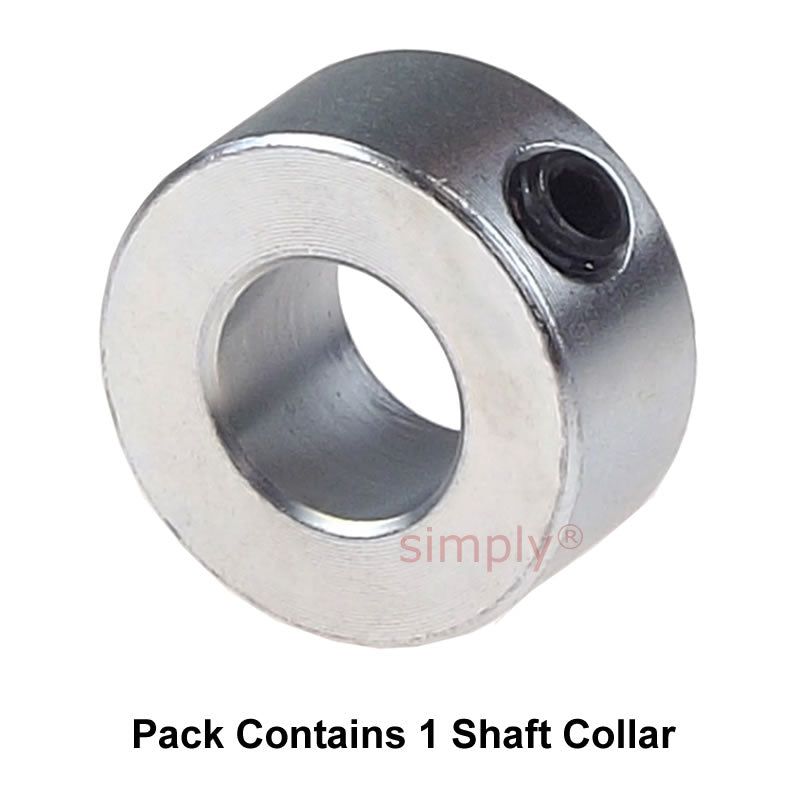

CABUI300ZSW Zinc Plated En8 Steel Shaft Collar 3x4-1/4x1/8 inch with Set Screw
CABUI300ZSW Zinc Plated En8 Steel Shaft Collar 3x4-1/4x1/8 inch with Set Screw
Regular price
CHF 14.87
ex VAT
Regular price
Sale price
CHF 14.87
ex VAT
In stock
Price Break
5+
CHF 14.72
10+
CHF 14.13
20+
CHF 13.83
50+
CHF 13.38
100+
CHF 13.09
500+
CHF 12.34
1000+
CHF 10.41
Couldn't load pickup availability
Description
Description
|
Imperial Shaft Collar with Grub Screw: EN8 Steel Galvanized shaft collar with grub screw to lock it in place once installed, typical uses include location of bearings on shafts, positioning of shafts, separation of items along shafts and more... Benefits: Galvanized steel, corrosion resistant. Tough EN8 material. |
- Brand / Quality:
- Simply Shaft Collars - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
- Width:
- 3.18mm = 0.125 (1/8) inch
Technical
Technical
| Bore (A) | 76.2mm = 3 inch |
|---|---|
| Diameter (B) | 107.95mm = 4.25 (4-1/4) inch |
| Width (C) | 3.18mm = 0.125 (1/8) inch |
| Set Screw | 5/8 BSW or 5/8-11 UNC |
