SKU: CADB70Z

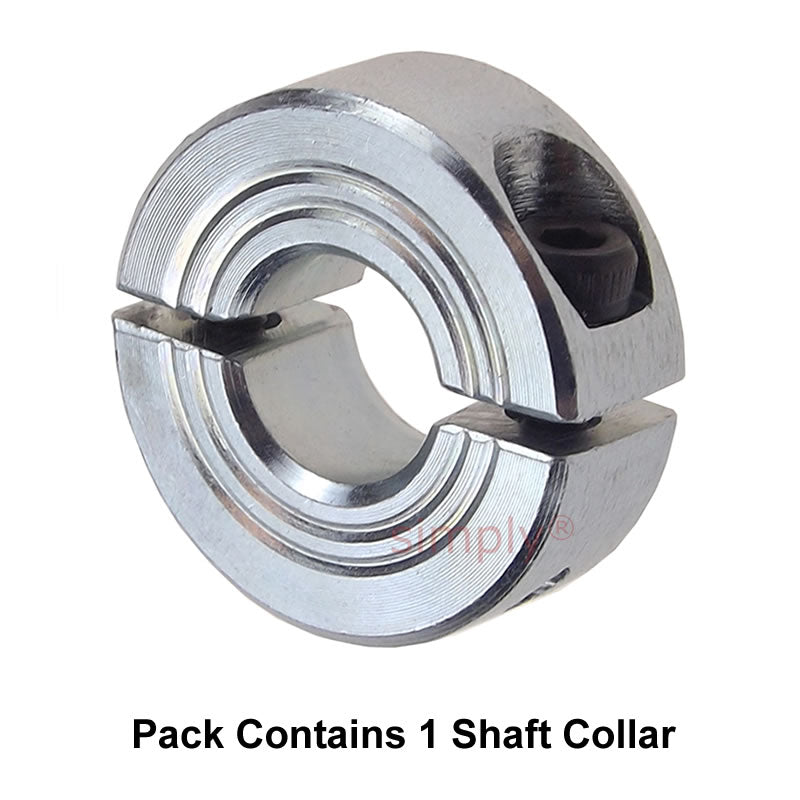

CADB70Z Zinc Plated En8 Steel Double Split Shaft Collar 70x98x19mm with Clamp Bolt
CADB70Z Zinc Plated En8 Steel Double Split Shaft Collar 70x98x19mm with Clamp Bolt
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
5+
CHF 26.29
10+
CHF 25.23
20+
CHF 24.70
50+
CHF 23.90
100+
CHF 23.37
500+
CHF 22.04
1000+
CHF 18.59
Description
Description
|
Zinc plated EN8 Steel fully split shaft collar with 2 locking screws: Allows assembly / disassembly on and off the shaft without the need to remove other ancillary components. Clamps firmly in place once tightened to the shaft. Ideal for positioning components such as bearings or sprockets onto shafts. Benefits: Galvanized steel, corrosion resistant. Tough EN8 material. |
- Brand / Quality:
- Simply Shaft Collars - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 98mm
- Width:
- 19mm
Technical
Technical
| Bore (A) | 70mm |
|---|---|
| Diameter (B) | 98mm |
| Width (C) | 19mm |
| Clamp Bolt | M8x25 |
