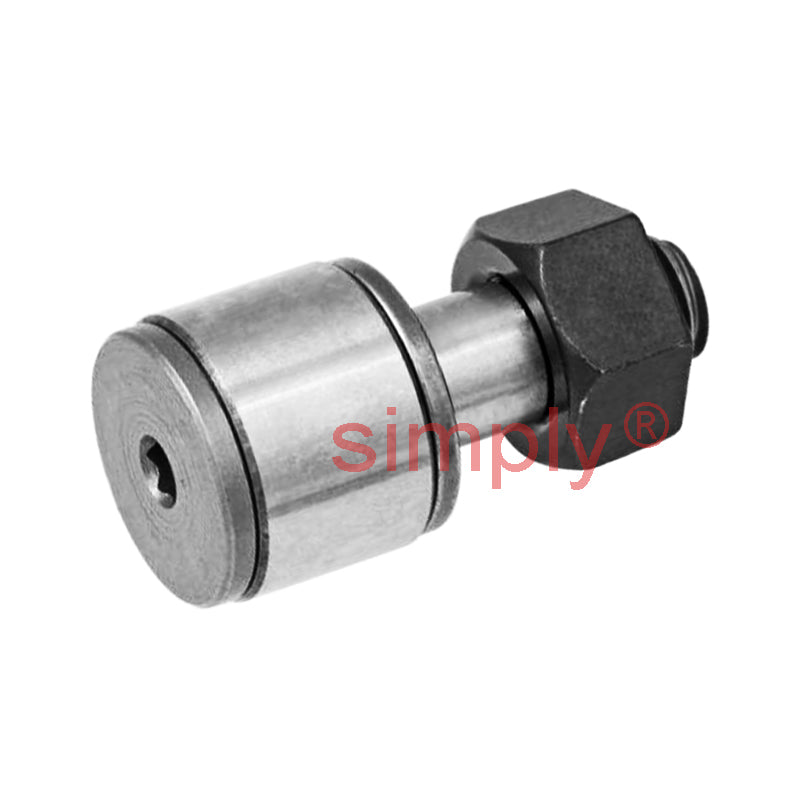

Budget CFS2.5V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 5x3x2.5mm M2.5x0.45 Thread
Budget CFS2.5V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 5x3x2.5mm M2.5x0.45 Thread
Regular price
CHF 34.59
ex VAT
Regular price
Sale price
CHF 34.59
ex VAT
In stock
Price Break
10+
CHF 30.79
19+
CHF 29.06
29+
CHF 28.71
39+
CHF 28.36
49+
CHF 28.02
74+
CHF 27.67
99+
CHF 25.94
199+
CHF 25.60
249+
CHF 25.25
499+
CHF 24.90
999+
CHF 24.21
Couldn't load pickup availability
Description
Description
Miniature Cam Followers: This bearing has excellent needle-type rollers built into the outer ring, and it is designed compactly so that the outer ring's outside diameter is small compared to the stud diameter. It is used in electronics parts machinery, OA (Office Automation) equipment, and small index devices.
Benefits: Compact design, high load capacity, smooth and quiet operation.
The CFS Series has no oil hole, so is provided with prepacked grease.
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 5mm
- Width:
- 3mm
- Pitch:
- M2.5x0.45

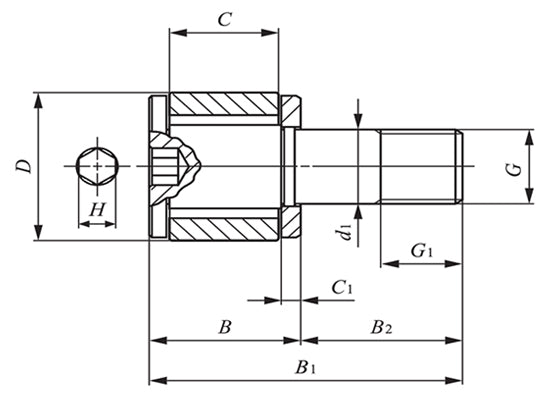

Technical
Technical
| D | 5mm |
|---|---|
| C | 3mm |
| d1 | 2.5mm |
| G1 | 2.5mm |
| B | 4.5mm |
| G | M2.5x0.45mm |
| B1 | 9.5mm |
| B2 | 5mm |
| C1 | 0.7mm |
| H | 0.9mm |
| Basic Dynamic Load Rating C | 970 N |
| Basic Static Load Rating C0 | 1050 N |
| Maximum Static Load | 360 N |
| Weight | 1g |
