SKU: CFS3V

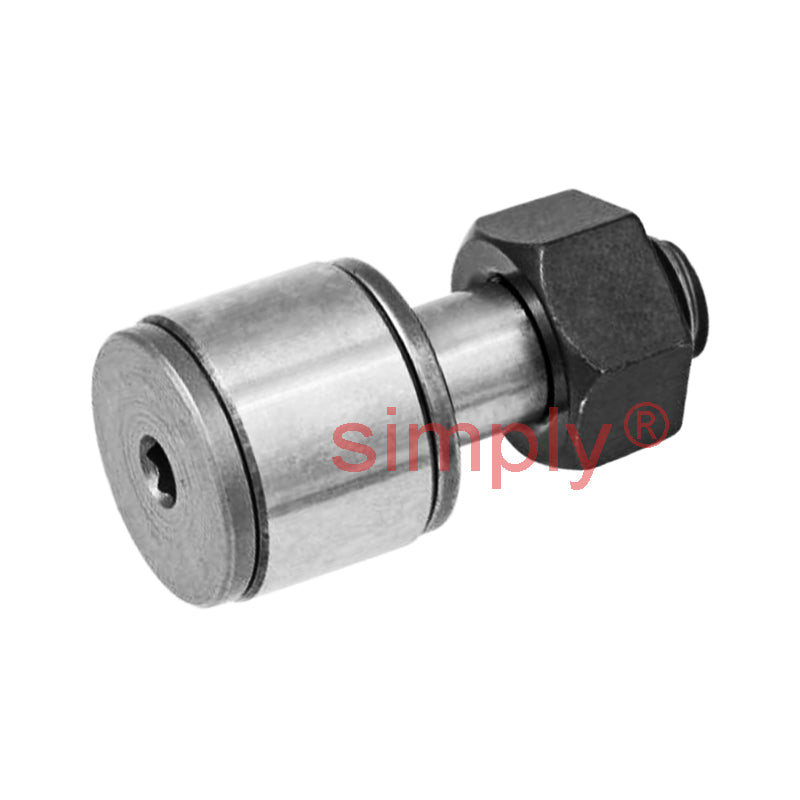

Budget CFS3V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 6x4x3mm M3x0.5 Thread
Budget CFS3V Full Complement Miniature Type Cam Follower with Cylindrical Outer and Hex Head 6x4x3mm M3x0.5 Thread
Regular price
CHF 28.83
ex VAT
Regular price
Sale price
CHF 28.83
ex VAT
In stock
Price Break
10+
CHF 25.66
19+
CHF 24.22
29+
CHF 23.93
39+
CHF 23.64
49+
CHF 23.35
74+
CHF 23.06
99+
CHF 21.62
199+
CHF 21.33
249+
CHF 21.05
499+
CHF 20.76
999+
CHF 20.18
Couldn't load pickup availability
Description
Description
Miniature Cam Followers: This bearing has excellent needle-type rollers built into the outer ring, and it is designed compactly so that the outer ring's outside diameter is small compared to the stud diameter. It is used in electronics parts machinery, OA (Office Automation) equipment, and small index devices.
Benefits: Compact design, high load capacity, smooth and quiet operation.
The CFS Series has no oil hole, so is provided with prepacked grease.
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 6mm
- Width:
- 4mm
- Pitch:
- M3x0.5
Technical
Technical
| D | 6mm |
|---|---|
| C | 4mm |
| d1 | 3mm |
| G1 | 3mm |
| B | 5.5mm |
| G | M3x0.5mm |
| B1 | 11.5mm |
| B2 | 6mm |
| C1 | 0.7mm |
| H | 1.3mm |
| Basic Dynamic Load Rating C | 1360 N |
| Basic Static Load Rating C0 | 1710 N |
| Maximum Static Load | 470 N |
| Weight | 2g |
